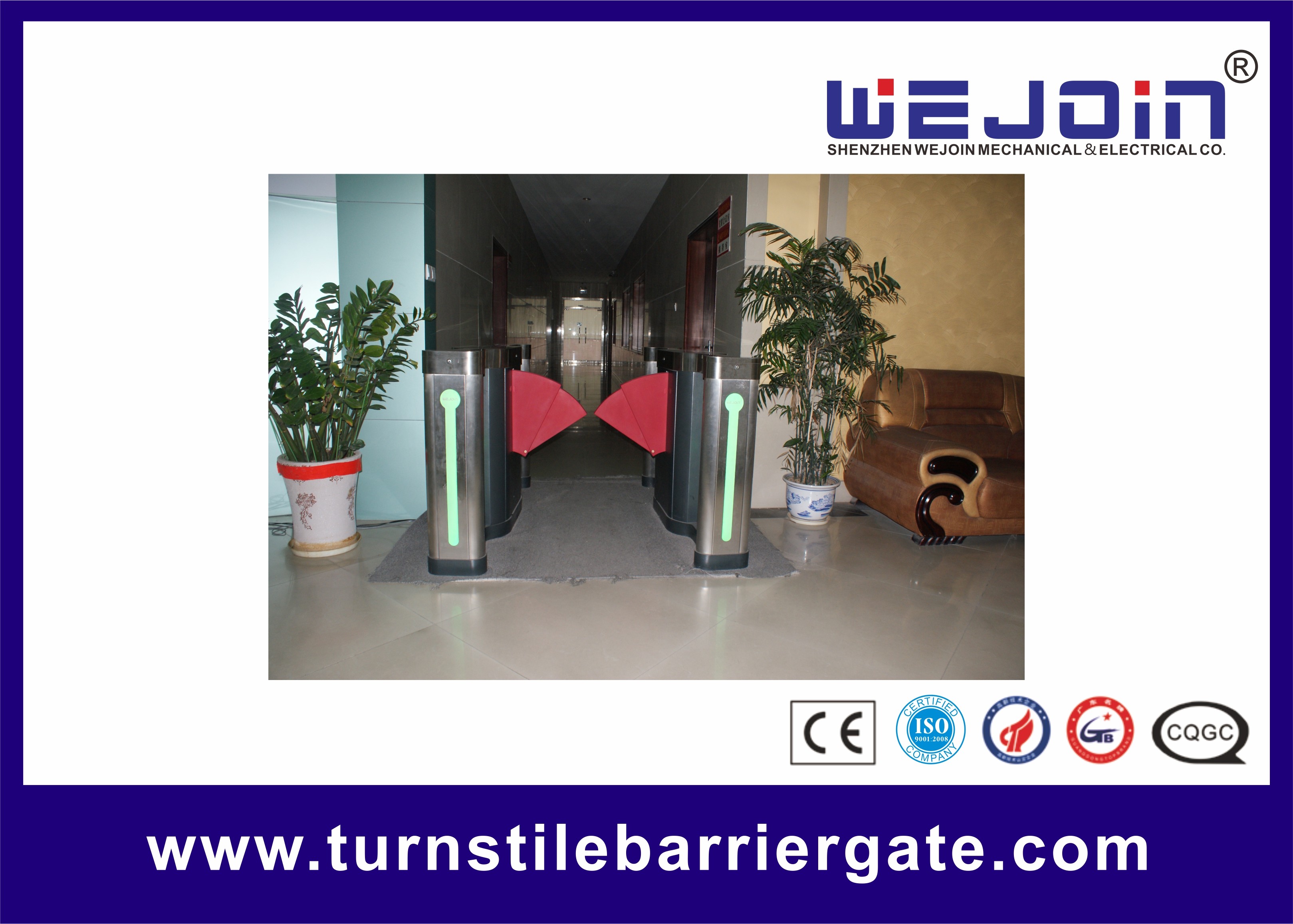

Automatic Flap Barrier with Extanding Flap and LED light Used in Metro Station

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: WEJOIN
Certification: CE;ISO
Model Number: WJTY212
Minimum Order Quantity: 1+pair
Price: USD+5500-5580+pair
Packaging Details: carton
Delivery Time: in 5 working days
Payment Terms: T/T
Supply Ability: 3000+sets+per month
Detail Information
Stretching-out Flap Width: 275mm The Max Lane Width: 900mm
Motor Voltage: DC12V
High Light:

security turnstiles


half height turnstile

Product Description

Flap Barrier/Speed Gate


Functions & Features

1. With function of self-examine and alarm, it is convenient for maintenance and use.

2. Be able to program running status by the small keyboard in the main board

3. Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from hurt.

4. Light and sound alarm is generated when the illegal invasion and the tail followed.

5. Arms are automatically locked until opening signal is received.
6. Arms synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.(default time is 10sec.)

 8. Automatically open the gate when power off and automatically close when power on.

 9. Several readers devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine est.)
10. One direction or bi-direction is optional.

11. It can be directly controlled and managed by remote control.


Model WJTY201
Stretching-out flap length 275mm
The max lane width 600mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Organic glass
Housing of thickness 1.5mm
Normal Life Span 3 millions times
Communication Interface Standard RS485(distance less than 1200 meters)
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation
