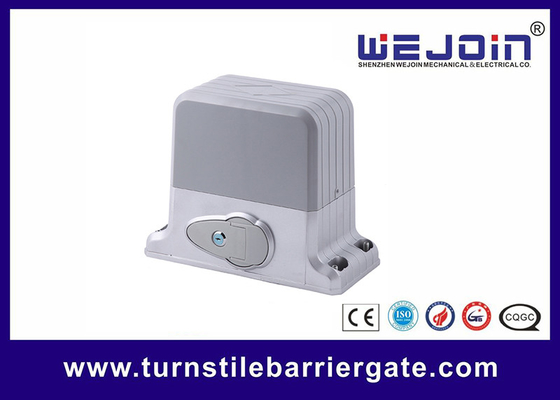

Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Type: Automatic Door Operators Power Supply: 110V/220V AC
Usage: Residential Sliding Gates Function: Control,driving
Max Weight Of Gate: 1800 KG Material: Aluminum Alloy Die-cast
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up



Overview
This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.
Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.



Functions

1. Integrated electromechanical design
2. Electronic soft start
3. Reversing on obstacle
4. Infrared photocell socket
5. Alarm light socket
6. Wires control and remote control
7. Delay closing
8. Reversing sensitivity adjustable
9. Bus-mastering (various operation ways)
10. Automatic warm-up



Sliding Gate Motor Technical Data

Model

MP202

Voltage

220V±10%

110V±10%

Current

2.7A

5.8A

Absorbed  power

594W

638W

Working temperature

-35℃~+85℃

Relative humidity

≤90%

Remote control distance

≤50M

Mode number

M=4

Gear Speed

58.5rpm

70.2rpm

Torque

35NM

Max weight of gate

1800kg

Travel speed

11m/min

13.2m/min

Reduction ratio

23:1

Overload protection temperature

130℃



Motor base and it's installation

1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.



Motor installation
1.Put the motor on the base, fix up the motor with hexangular screws.
2.Loosen the four screws on the outer shell and remove the shell Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts.


Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up 0
