| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO,SGS |
| Model Number: | WJMP202 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 150-200 SET |
| Packaging Details: | Carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 set / month |
| Type: | Gate Operators | Material: | Aluminum Alloy Die-cast |
|---|---|---|---|
| Usage: | Universal | Remote Control: | 418MHZ |
| Power: | 350w | ||
| High Light: | sliding gate opener motor,automatic sliding gate opener |
||

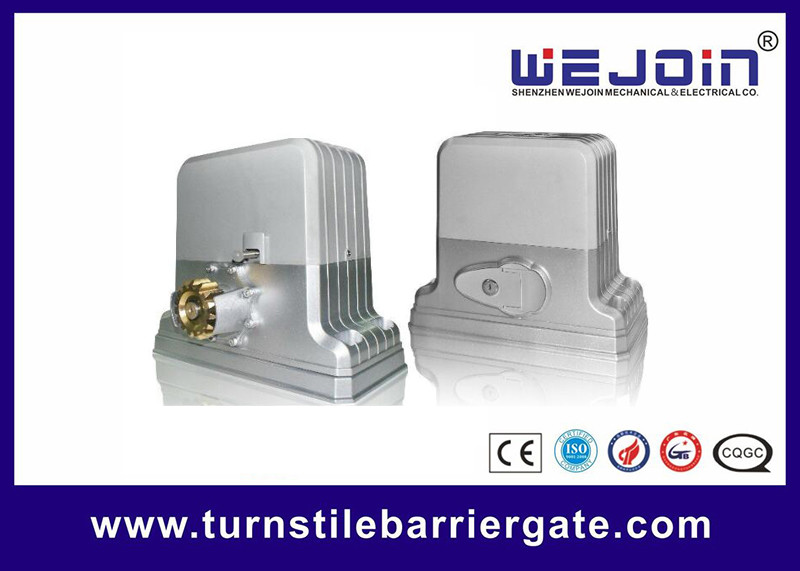

35NM Torque Sliding Gate Motor Wires / Remote Control Infrared Photocell Socket
Overview
This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.
Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.
Specification
1) Integrated mechanical and eletrical,all functions on one controller
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key- stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control
Motor Data
|
Model |
WJKMP202 |
|
Voltage |
110V±10% |
|
Frequency |
60HZ |
|
Current |
5.8A |
|
Motor voltage |
AC220V / 110V |
|
Capacitor |
60μf +14μf |
|
Output Power |
350W |
|
Absorbed power |
638W |
|
Torque |
35nm |
|
Mode number |
M=4 |
|
Motor speed |
1620rpm |
|
Reduction ratio |
23:1 |
|
Gear speed |
70.2rpm |
|
Travel speed |
13.2m/min |
|
Working temperature |
-40°C∼ +55°C |
|
Overload protection temperature |
130°C |
|
Motor making technique |
Die casting aluminum alloy |
|
Manual Release |
Yes |
|
Product weight(approx) |
10.25kg |
|
Max.weight of gate |
1800kg |
Electronic Data
|
Model |
KMP202 |
|
Soft start |
YES |
|
Stop on obstacle (sensitivity adjustable) |
YES |
|
Auto warming-up (at freezing temperature) |
YES |
|
Remote control |
418MHz (50m, approx) |
|
Wire control |
Available |
|
Auto closing |
YES |
|
Vehicle loop detector socket |
YES |
|
Photocell socket |
YES |
|
Alarm light socket |
YES |
Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered.
3. Technical support
