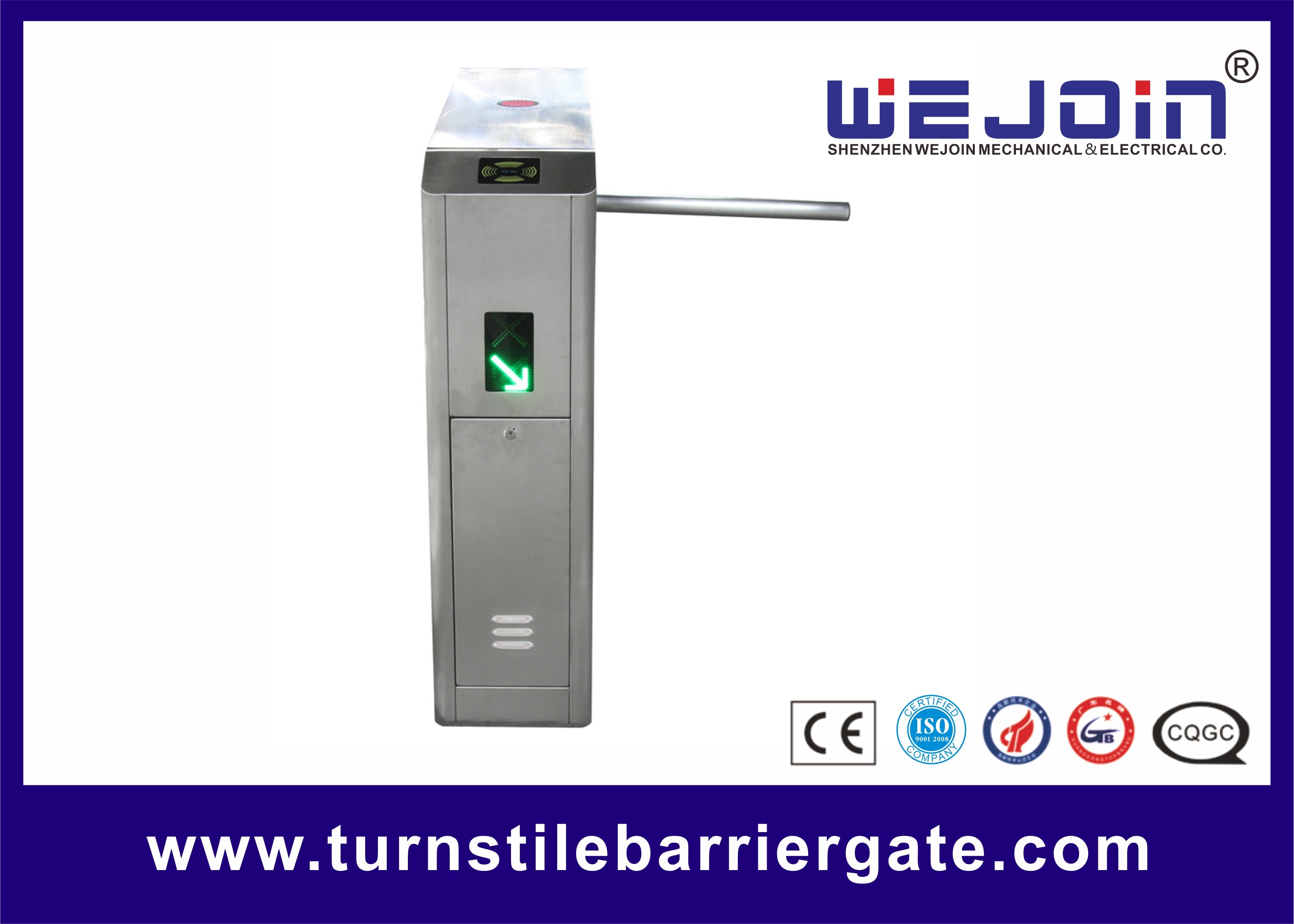

Inner Look:
Features and Functions:
1.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to
access will be canceled, and the set time can be changed according to your request
2.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
3.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
4.Several ways of working molds can be chosen at your request
5.The nu.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protectionmber of the persons who have passed by can be counted automatically which can also be displayed in LED
6.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
7.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
8.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
9.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
10.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
11.You can set the function with or without card-reading memory according to your requirement
12.All the system runs stable with little noise and no mechanical impact
13..Beam can be lifted and fall when electricity is cut-off
| Model | WJTS122 | WJTS112 | WJTS110 | WJTS111 |
| Driving Model | Full-automatic | |||
| Material of housing | 304 Stainless Steel | Iron with Powder | ||
|
Dimension of housing (L*W*H mm) |
420*380*1000 | 1235*280*1000 | 1230*280*1000 | 420*380*1050 |
| Thickness of housing | 1.5mm | |||
| Length of pole | 490mm | |||
| Net weight | 50kg | 70 kg | 70 kg | 45 kg |
| Max load-bearing of pole | 80kg | |||
| Driving force of pole | 3kg | |||
| Rotating direction | Double direction | |||
| Power supply | 220V±10%, 110V± 10% | |||
| Frequency | 50/60HZ | |||
| Working voltage of motor | DC12V | |||
| Rated power | 50W | |||
| Driving motor | Brush DC motor | |||
| Input interface | DC12V electrical level signal, more than 10ms, or DC12V impulse signal driveling current, more 10mA | |||
| Transit speed | 25~32 persons/min | |||
| Working temperature | -25°C~55°C | |||
| Working environment | Indoor / Outdoor (Shelter) | |||
| Relative humidity | ≤95%, no condensation | |||
