Semi-automatical Access Control Tripod Turnstile

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTS112S
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 50PCS/week
Detail Information
Housing Matetial: Stainless Steel 304 Direction: Bi-direction
Voltage: 110V,220V
High Light:

security entrance gates

,

entrance gate security systems


Product Description

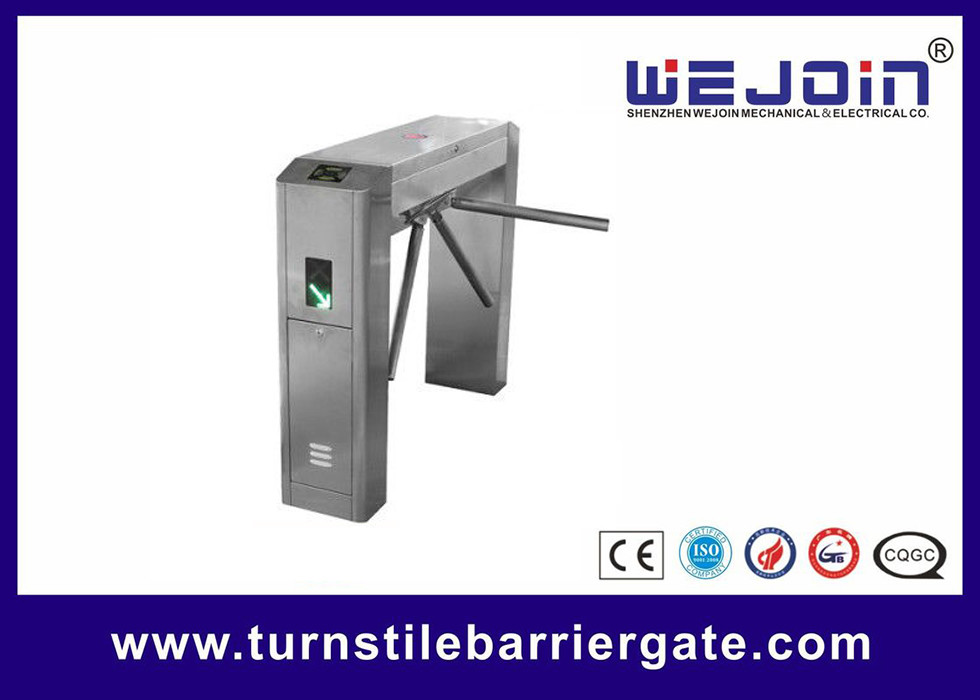

Semi-automatical Access Control Tripod Turnstile



Features and Functions:

1. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

2. Passable for bi-direction

3. Self-locking within 5 seconds if there is no one passing after signal activation

4. Arm auto dropping when power off and manually put the arm up when power on

5. Person counter output is available to indicating passenger quantity; the pulse is 200MS

6. Able to avoid unauthorized access

7. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal

 activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

8. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS;  EM signal should

maintain connected when any emergency happens.

9. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of

200MS; working with devices of DC 5V, 12V, 24V.

10. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V



Applications:

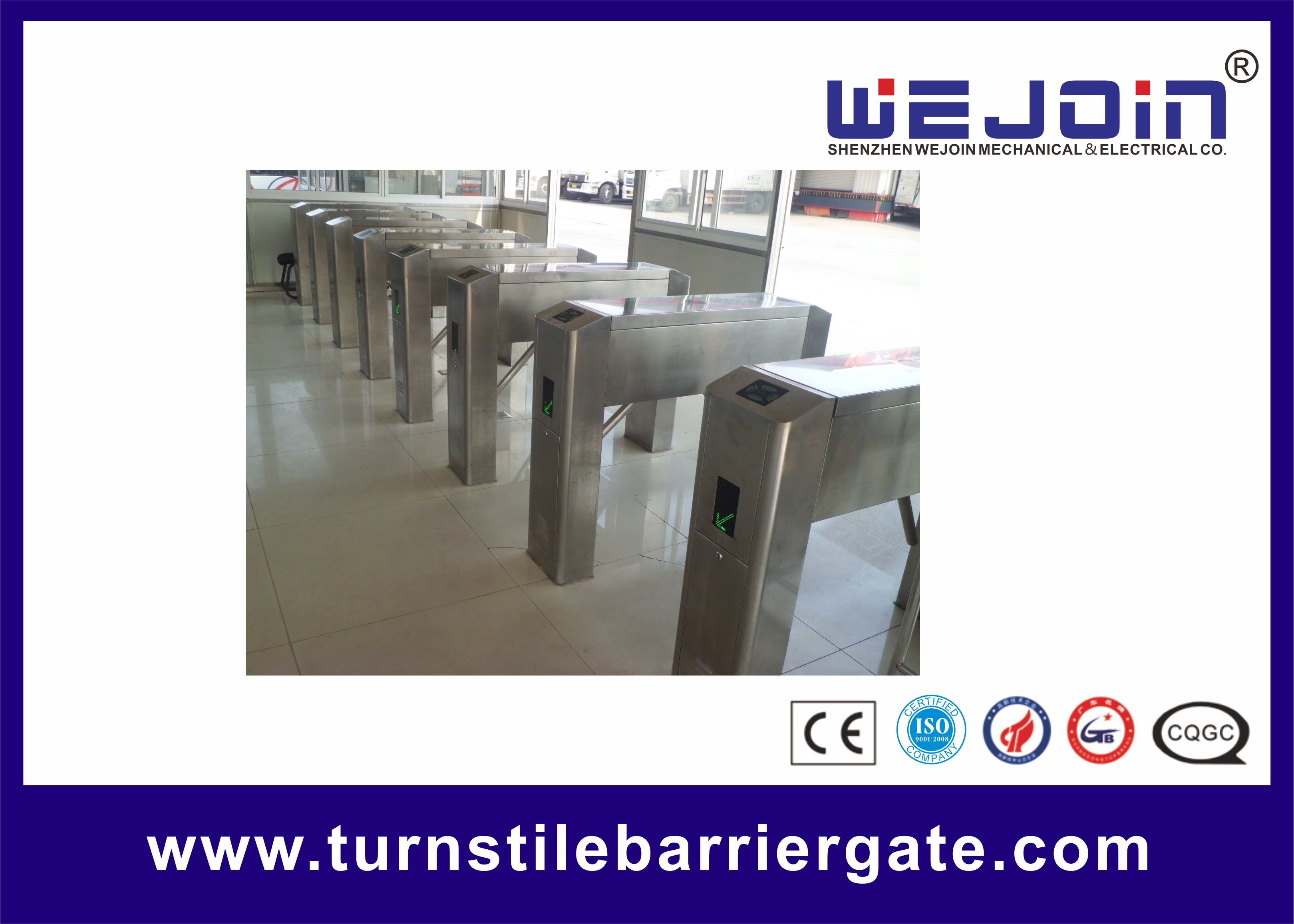

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros,

bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service:

1 year warranty

Lifetime Service with charge accordingly





Production Series

Model WJTS122 WJTS112 WJTS110 WJTS111
Driving Model Full-automatic
Material of housing 304 Stainless Steel Iron with Powder

Dimension of housing

(L*W*H mm)

420*380*1000 1235*280*1000 1230*280*1000 420*380*1050
Thickness of housing 1.5mm
Length of pole 490mm
Net weight 50kg 70 kg 70 kg 45 kg
Max load-bearing of pole 80kg
Driving force of pole 3kg
Rotating direction Double direction
Power supply 220V±10%, 110V± 10%
Frequency 50/60HZ
Working voltage of motor DC12V
Rated power 50W
Driving motor Brush DC motor
Input interface DC12V electrical level signal, more than 10ms, or DC12V impulse signal driveling current, more 10mA
Transit speed 25~32 persons/min
Working temperature -25°C~55°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation

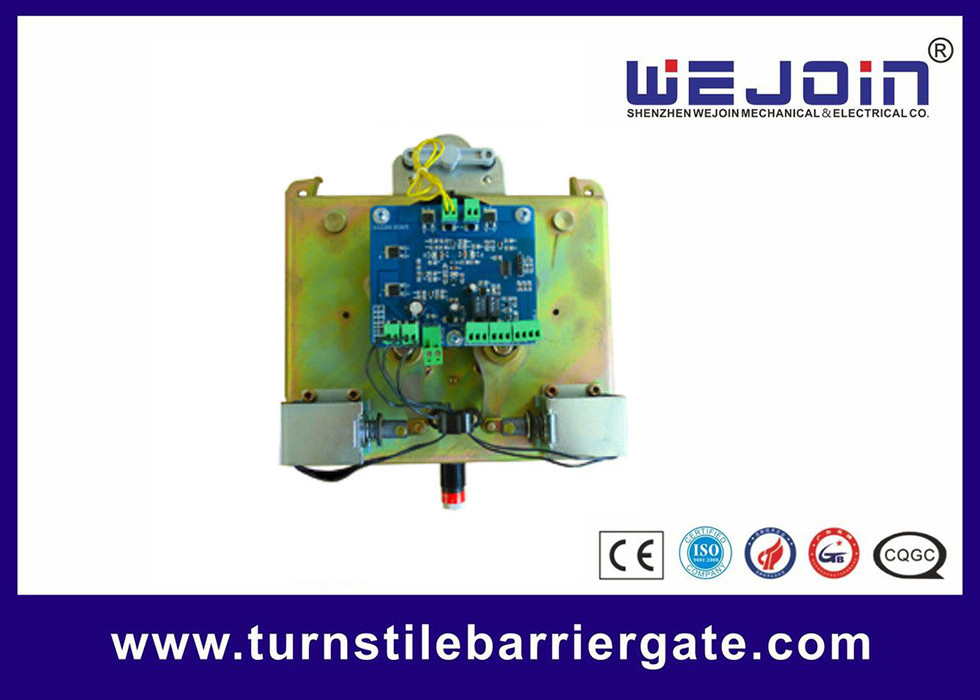

Inner Look:
