Smart Tripod Half Height Turnstiles / Automatic Systems Turnstiles

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJTS112
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 50PCS/week
Detail Information
Material Of Housing: 304 Stainless Steel Driving Force Of Pole: 3KG
Power Supply: 220V±10%, 110V±10% Working Voltage Of Motor: DC12V
Rated Power: 50W Transit Speed: 30~40 Persons/min
High Light:

pedestrian barrier gate

,

security entrance gates


Product Description

Smart Tripod Half Height Turnstiles / Automatic Systems Turnstiles



Specification:



Model
Item
WJTS122 WJTS110 WJTS112 WJTS111
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel Iron with Powder
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000 1235×280×1000 1235×280×1000 420×380×1050
Length of Pole (out of housing) 490mm
Net Weight 50kg 70kg 70kg 45kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Driving Motor DC Motor
Input Interface DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%



Features and Functions:



1. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

2. Passable for bi-direction

3. Self-locking within 5 seconds if there is no one passing after signal activation

4. Arm auto dropping when power off and manually put the arm up when power on

5. Person counter output is available to indicating passenger quantity; the pulse is 200MS

6. Able to avoid unauthorized access

7. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

8. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS;  EM signal should maintain connected when any emergency happens.

9. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.



Applications:



The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service:



1 year warranty

Lifetime Service with charge accordingly



Package Preview:

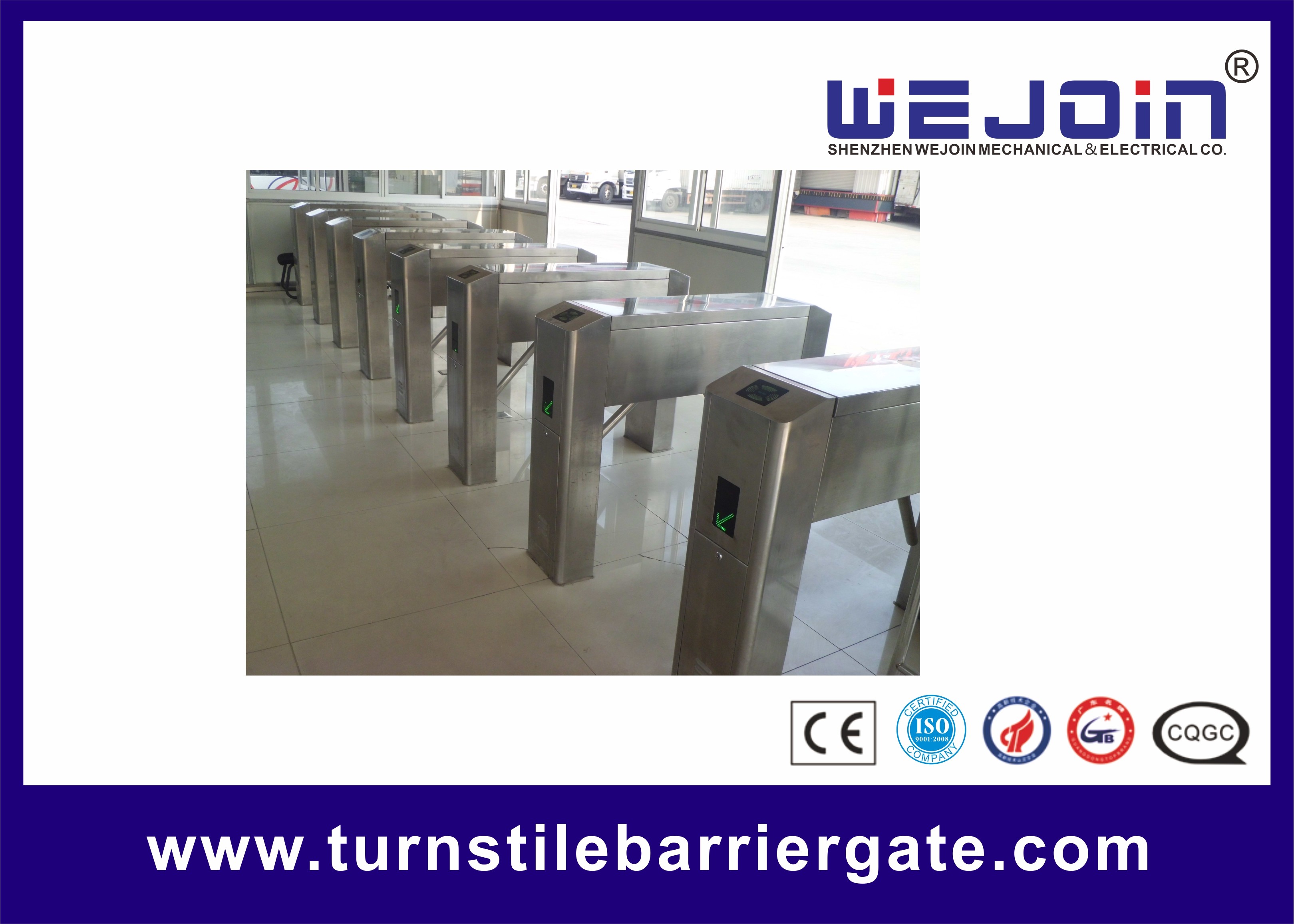

Smart Tripod Half Height Turnstiles / Automatic Systems Turnstiles 0
