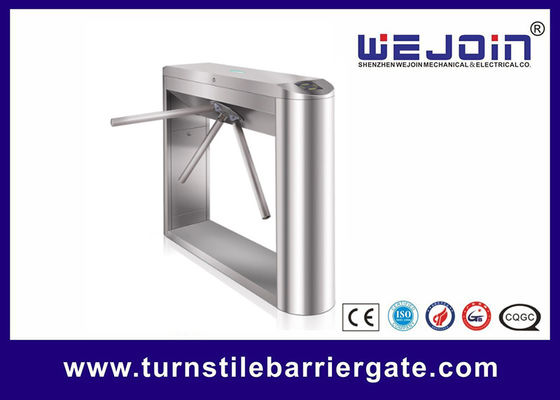

Bridge Tripod Turnstile Gate Face Recognition Access Control With Card Reader

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: Q2
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Shape: Bridge-type Volt: 220V /110V
Rated Power: 50W Roataing Direction: Double Direction
Frequency: 50Hz/60Hz Material: 304 Stainless Steel
High Light:

Bridge Tripod Turnstile Gate

,

Face Recognition Tripod Turnstile Gate

,

Card Reader Tripod Turnstile


Product Description

 Access Control Face Recognition Tripod Turnstile Gate with Card Reader



Turnstile Function and Features:

1,Electromechanical integration structure design, stable and reliable self-locking device

2,Two-way passage function

3,Anti-reverse passage function

4,power failure drops the pole automatically, restore power, manually adjust the pole

5,After opening the tripod turnstile gate, if the passage is not made within the specified time, the self-locking device will be re-locked and the self-locking time will be adjustable



Tripod Turnstile Specifications:

Model

Q2

Material of Housing

304 Stainless Steel

Dimension of Housing (L×W×H mm)

1200×280×990

Length of Pole (out of housing)

490mm

Net Weight

70kg

Max Load-bearing of Pole

60kg

Driving Force of Pole

2KG

Rotating Direction

Double Direction

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

50W

Transit Speed

30~40 persons/min

Working Temperature

-40°C~55°C

Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity

≤95%



Tripod Turnstile Gate Service Terms

1. The warranty time is one year

2. Offering the lifetime service with charge

3. Offering the technology support

4. Online service for twenty-four hours.
