| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | SO 9001:2008, CE, |
| Model Number: | Q2 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Shape: | Bridge-type | Volt: | 220V /110V |
|---|---|---|---|
| Rated Power: | 50W | Roataing Direction: | Double Direction |
| Frequency: | 50Hz/60Hz | Material: | 304 Stainless Steel |
| High Light: | Fast Speed Turnstile Barrier Gate,Entrance Exit Turnstile Barrier Gate,Speed Turnstile Gate 50W |
||

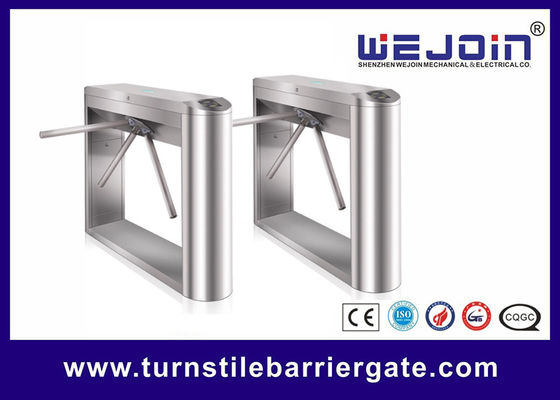

CE Approved Entrance Exit Fast Speed Turnstile Barrier with Qr Code Bar Code RFID Reader
Tripod Turnstile Specifications:
|
Model |
Q2 |
|||
|
Material of Housing |
304 Stainless Steel |
|||
|
Dimension of Housing (L×W×H mm) |
1200×280×990 |
|||
|
Length of Pole (out of housing) |
490mm |
|||
|
Net Weight |
70kg |
|||
|
Max Load-bearing of Pole |
60kg |
|||
|
Rotating Direction |
Double Direction |
|||
|
Frequency |
50/60HZ |
|||
|
Working Voltage of Motor |
DC12V |
|||
|
Rated Power |
50W |
|||
|
Transit Speed |
30~40 persons/min |
|||
|
Working Temperature |
－40°C~55°C |
|||
|
Working Environment |
Indoor / Outdoor (Shelter) |
|||
Turnstile Gate Adjustment Illustrations
1. Mechanical parts checking
Before connect to the power, check the machine and the space between the rotating plate and housing.
2. System functions adjustment
1)The left and right opening functions adjustment: press the left and right opening button, the tripod turnstile will turn at the angle of 15 º,if there is no one passing,the arm will reset within the setting period and to cancel the access without counting the number.
2) Arm drop adjustment: cut off the power, the arm will drop automatically; connect the power, the magnet will power on, and the arm will rotate for one ground, the dropped arm will reset and is at its horizon level.
Turnstile Function and Features:
1,Electromechanical integration structure design, stable and reliable self-locking device
2,Two-way passage function
3,Anti-reverse passage function
4,Power failure drops the pole automatically, restore power, manually adjust the pole
5,After opening the tripod turnstile gate, if the passage is not made within the specified time, the self-locking device will be re-locked and the self-locking time will be adjustable
6,External two-way flow counter can be connected
