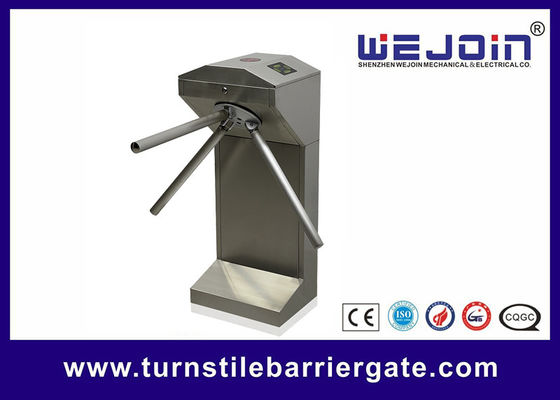

Access control security vertical drop arm tripod turnstile bi-directional passage
Turnstile Gate Functions and Features:
1. High control precision, low power consumption, and low noise.
2. It can be integrated with any kinds of access control system, such as RFID device, push button, fingerprint, biometric, card swallowing machine and so on.
3. Bi-direction pass/any single direction pass (adjustable).
4. Arm auto-drop when power off, and auto rise up when power on.
5. Traffic light indicator.
Turnstile Technical Parameters
|
Model |
WJTS211 |
|
Material of Housing |
304 Stainless Steel |
|
Dimension of Housing |
420*330*980mm |
|
Length of Pole(out of housing) |
490mm |
|
Net Weight |
50kg |
|
Input Voltage |
220VAC±10%, 110VAC±10% |
Tripod Turnstile Adjustment Illustrations
1. Mechanical parts checking
Before connect to the power, check the machine and the space between the rotating plate and housing.
2. System functions adjustment
1)The left and right opening functions adjustment: press the left and right opening button, the tripod turnstile will turn at the angle of 15 º,if there is no one passing,the arm will reset within the setting period and to cancel the access without counting the number.
2) Arm drop adjustment: cut off the power, the arm will drop automatically; connect the power, the magnet will power on, and the arm will rotate for one ground, the dropped arm will reset and is at its horizon level.
