| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | SO 9001:2008, CE, |
| Model Number: | WJTS211 |
| Minimum Order Quantity: | 1 set |
| Price: | $200.00-$230.00 / Set |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 2-7 working days after payment received |
| Supply Ability: | 1, 0000 set / month |
| Cabinet Material: | 304 Stainless Steel | Mechanism: | Die-casting Alloy Aluminum |
|---|---|---|---|
| Communication: | RS232 | Warranty: | 1 Year |
| Rotating Direction: | Both Way | Product Name: | Motorized Tripod Turnstile |
| High Light: | 304 SS Tripod Turnstile Gate Mechanism,SS Molded Tripod Turnstile Gate,Motorized Tripod Turnstile Gate |
||

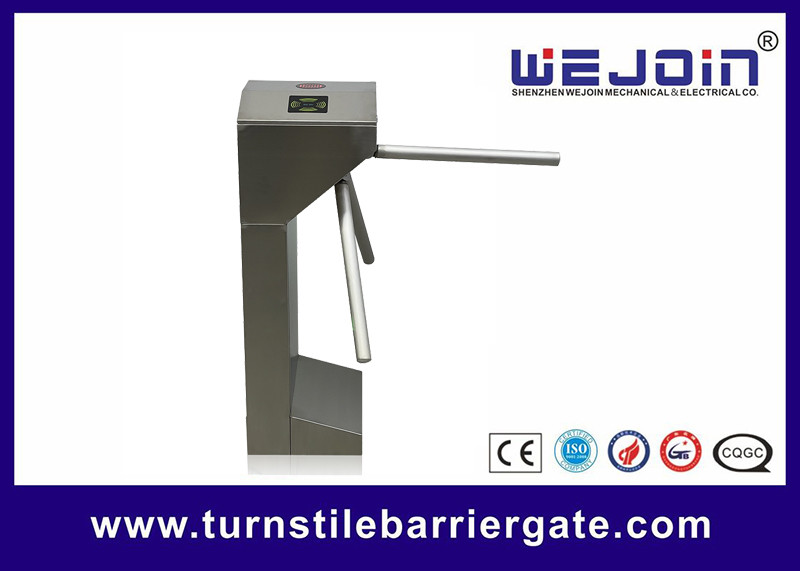

Bi-directional passage 304 stainless steel Molded Tripod Turnstile Mechanism
Turnstile Gate Functions and Features:
1. 304 stainless steel: Anti-rust, wear-resistant, high temperature resistant, and corrosion resistance
2. Molded Tripod Turnstile Mechanism: Die-cast aluminum integral molding, special paving treatment
3. Pedestrian passage gate main board: Dynamic arrow lights guide traffic, Dry contact signal, Support fire signal access, Memory mode
Turnstile Technical Parameters
|
Model |
WJTS211 |
|
Material of Housing |
304 Stainless Steel |
|
Dimension of Housing |
420*330*980mm |
|
Length of Pole(out of housing) |
490mm |
|
Net Weight |
50kg |
|
Input Voltage |
220VAC±10%, 110VAC±10% |
|
Motor Power |
50W |
Tripod Turnstile Adjustment Illustrations
1. Mechanical parts checking
Before connect to the power, check the machine and the space between the rotating plate and housing.
2. System functions adjustment
1)The left and right opening functions adjustment: press the left and right opening button, the tripod turnstile will turn at the angle of 15 º,if there is no one passing,the arm will reset within the setting period and to cancel the access without counting the number.
2) Arm drop adjustment: cut off the power, the arm will drop automatically; connect the power, the magnet will power on, and the arm will rotate for one ground, the dropped arm will reset and is at its horizon level.
