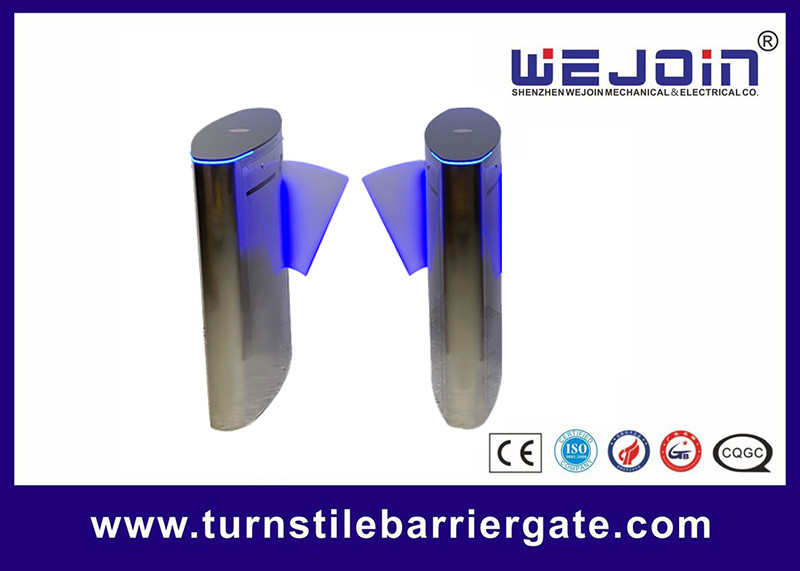

Access Control Turnstile Pedestrian Flap Barrier Gate for Subway
Flap Barrier Gate Applications:
High class communities, intelligent buildings, hotels, subway stations and other high level venues.
Flap Barrier Gate Quick Detail:
Material: 304 stainless steel
working temperature :-10°C~50°C
Function: automatic
Direction: bi-direction
Power supply :AC220V±15%, AC110V±15%
Motor voltage :DC12V (brush motor)
Flap Barrier Gate Specifications
|
Model |
WJTY502 |
|
Cabinet dimension |
1200mm(L)×300mm(W)×1000mm(H) |
|
Stretching-out flap length |
280mm |
|
The max lane width |
660mm |
|
Cabinet material |
304 stainless steel |
|
Power supply |
AC220V±15%, AC110V±15% |
|
Motor voltage |
DC24V (servo motor) |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
1 sec |
|
reset time when power on |
3 sec |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-10°C~50°C |
Flap Barrier Gate Functions and Features
1. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection. Which is easy for operation and maintenance.
3. Flap work synchronously.
4. Flap auto reversing when meeting exterior force.
5. Audible and visual alarm in case of unauthorized access.
6. Auti-reverse passing
7. Operational mode can be set up through the built-in menu on the control board.
8. Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
9. Flaps open when power off, and auto-close when power on.
10. Compatible with diverse access control devices.
