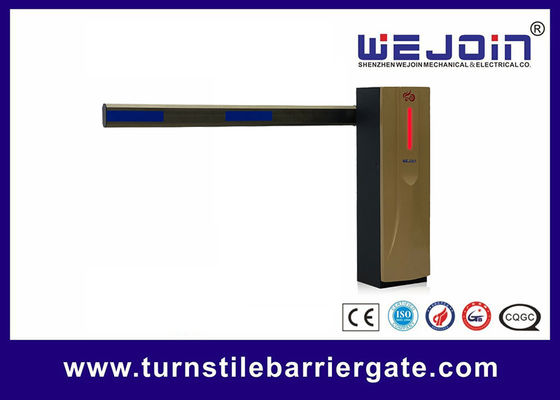

Waterproof Parking Barrier Gate with Max 240W DC24V Brushless Motor

1 PCS
MOQ
negotiation
Price
Waterproof Parking Barrier Gate with Max 240W DC24V Brushless Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Traffic Flow Application: 8000 Times/ 24 Hours
Max Motor Speed: 500r/min
Power Supply: AC220V/110V
Waterproof Level: IP54
Color: Gold
Motor: DC24V Brushless Motor
Name: Non-spring Parking Barrier Gate
Running Speed: 1.8-6s
Highlight:

240W Motor Parking Barrier Gate

,

Waterproof Parking Barrier Gate

,

DC24V Motor Parking Barrier Gate

Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE FCC
Model Number: WJNSBG101
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 working day
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

Product Description:

Parking Barrier Gate is an automated parking management gate that is designed to provide maximum security and convenience to parking lots. With a high MTBF of 5,000,000 times, this Parking Barrier Gate is powered by a 240W motor and an AC220V/110V power supply, providing reliable service even in harsh environmental conditions. The sturdy cabinet can be customized to fit different parking lots, while the operating temperature range from -35℃ to +80℃ ensures a stable performance. With this barrier-controlled parking gate, parking lots can be managed efficiently and securely.



Features:

1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.



Technical Parameters:

Parameter Value
Product Name Parking Barrier Gate
Application Parking Management Gate, Vehicle Access Barrier, Car Park Barrier
Waterproof Level IP54
Cabinet Customized
Max Output Torque 350N.m
Duty Cycle 100%
MTBF 5,000,000 Times
Remote Control Distance 30m
Motor DC24V Brushless Motor
Color Gold
Max Motor Power 240W
Feature Low Noise And Long Service Life


Applications:

WEJOIN's E40 Parking Barrier Gate is an ideal choice for parking lot gate and barrier operated parking. This product is specially designed for providing efficient and reliable service in any commercial, business or residential areas, such as airports, shopping malls, hotels and stadiums. It has a CE CCC certification, which guarantees its top-notch quality and safety.

The minimum order quantity for this product is 1 PCS, and the price is negotiable. It will be packaged in a carton and delivered within 7 working days after payment. The motor voltage is DC24V and the maximum motor speed is 500r/min, with a motor power of 240W. The product is low in noise and has a long service life with a MTBF of 5,000,000 times. WEJOIN's E40 Parking Barrier Gate is highly dependable and has a huge supply ability of 10,000 sets per month.



Customization:

WEJOIN E40 Automatic Parking Barrier Gate

Brand Name: WEJOIN
Model Number: E40
Place of Origin: China
Certification: CE CCC
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton
Delivery Time: 7 Working Days
Payment Terms: T/T
Supply Ability: 10000 Sets/Month
Max Output Torque: 350N.m
Waterproof Level: IP54
Material: 304 Stainless Steel
Color: Gold
Max Motor Speed: 500r/min

WEJOIN E40 Automatic Parking Barrier Gate is a perfect solution for Parking Management. It is made of 304 Stainless Steel, and its Waterproof Level is IP54. The Max Output Torque is 350N.m and the Max Motor Speed is 500r/min, and it comes in a Gold color. This Automated Parking Gate is CE and CCC certified, and is supplied in a carton. The Minimum Order Quantity is 1 PCS, and the Delivery Time is 7 Working Days. The Payment Terms are T/T, and the Price is Negotiable.



Support and Services:

Parking Barrier Gate Technical Support and Service

We offer technical support and service for our Parking Barrier Gate products. Our team is available to provide assistance and guidance in the installation and operation of the product.

We provide repair and maintenance services for our Parking Barrier Gate products. Our team is highly experienced and equipped to help diagnose and repair any issue that may arise with your product.

We also offer troubleshooting support for our Parking Barrier Gate products. Our team has the expertise and knowledge to help you solve any problem that may arise with your product.

If you require any additional support or service for your Parking Barrier Gate products, please don't hesitate to contact us. We are always here to help.
