DC 24V Low Noise Parking Lot Gate with Long Service Life 1.8-6s Running Speed

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE FCC
Model Number: WJNSBG101
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: carton
Delivery Time: 7 working day
Payment Terms: T/T
Supply Ability: 10000 sets/month
Detail Information
Max Output Torque: 350N.m Color: Gold
Running Speed: 1.8-6s MTBF: 5,000,000 Times
Feature: Low Noise And Long Service Life Traffic Flow Application: 8000 Times/ 24 Hours
Duty Cycle: 100% Max Motor Speed: 500r/min
High Light:

Low Noise Parking Lot Gate


Long Service Life Parking Lot Gate


FCC Parking Lot Gate

Product Description

Product Description:

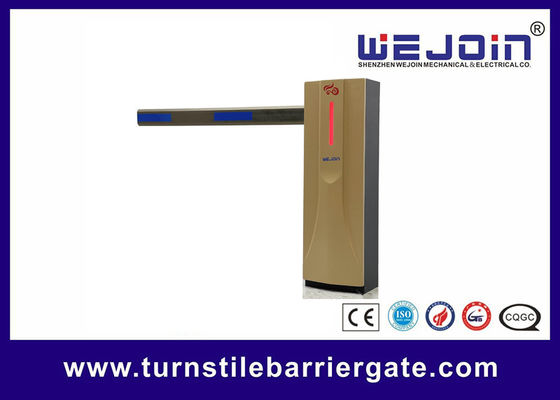

The Parking Barrier Gate is a Vehicle-Access-Barrier designed to provide secure, reliable and automated access control for Parking-Management-Gate. It is a Barrier-Operated-Parking-System that can be used in car parks, toll roads, airports and other commercial and industrial locations. Made of 304 stainless steel, with an IP54 waterproof level and a beautiful gold color, it is highly durable and long lasting. With an MTBF of 5,000,000 times and a remote control distance of 30m, this Parking Barrier Gate is the perfect solution to secure your parking lot and ensure a safe and secure access to your valuable assets.



1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.


Technical Parameters:

Product Attributes Specifications
Car Park Barrier Barrier Operated Parking
Motorised Parking Gate Motor: DC24V Brushless Motor
Operating Temperature -35~+80℃
Material 304 Stainless Steel
Duty Cycle 100%
Max Motor Power 240W
Traffic Flow Application 8000 Times/ 24 Hours
MTBF 5,000,000 Times
Max Motor Speed 500r/min
Motor Voltage DC24V
Remote Control Distance 30m


WEJOIN E40 Non-spring Parking Barrier Gate is the perfect choice for your automated parking lot gate. This car park barrier is designed with high quality materials and a gold color for a stylish and classic look. The motor speed is 500r/min and the duty cycle is 100%, allowing for a fast running speed of 1.8-6s. The non-spring design makes the gate easy to operate, and the CE FCC certification ensures safe usage. With a minimum order quantity of 1 PCS and a competitive price, you can be sure you are getting the best value for your money. The delivery time is 7 working days, and you can pay with T/T. WEJOIN even offers a supply ability of up to 10000 sets/month, so you can rest assured that your order will be fulfilled with ease.



WEJOIN E40 Motorised Parking Gate
  • Brand Name: WEJOIN
  • Model Number: E40
  • Place of Origin: China
  • Certification: CE CCC
  • Minimum Order Quantity: 1 PCS
  • Price: negotiation
  • Packaging Details: carton
  • Delivery Time: 7 working day
  • Payment Terms: T/T
  • Supply Ability: 10000 sets/month
  • Running Speed: 1.8-6s
  • Motor: DC24V Brushless Motor
  • Remote Control Distance: 30m
  • Cabinet: Customized
  • Max Motor Power: 240W

WEJOIN E40 Non-spring Parking Gate is specifically designed for parking management and access control. It is ideal for use as a barrier-operated parking gate, providing a secure and reliable solution. With a DC24V Brushless Motor, it has a running speed of 1.8-6s and a maximum motor power of 240W, and it can be remotely controlled up to a distance of 30m. It also has a customizable cabinet, and is certified by CE and CCC.


Support and Services:

Parking Barrier Gate Technical Support and Service

At Parking Barrier Gate, we provide technical support and service to help you get the most out of your product. Our technical support team is available 24/7 to answer questions, troubleshoot issues, and provide advice on how to use and maintain the product.

We also offer free software updates and upgrades to ensure your product is always up and running. If you need help with installation, our technical support team can help you every step of the way. We can even provide custom configurations to fit your specific needs.

We understand that your Parking Barrier Gate product is an important part of your business, so we take pride in providing the best technical support and service possible.
