| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO9001 |
| Model Number: | TBH01 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Service Life: | 3 Million Times | Material: | 304 Stainless Steel |
|---|---|---|---|
| Opening Angle: | 90° | Working Humidity: | 90% (no Condensation) |
| IP Rating: | IP54 | Motor Power: | 50W |
| Name: | Swing Barrier Gate | Input Voltage Of Power Supply: | AC100~240V |
| High Light: | Pedestrian Swing Barrier Gate,304 Stainless Steel Pedestrian Turnstile Gate,DC24V Pedestrian Turnstile Gate |
||
The system adopts brushless control technology, which allows it to detect the motor position in real-time. It also has physical anti-pinch protection and the sensitivity is adjustable.
Moreover, it supports access modes settings, such as card reader, free accessible, and forbidden at entrances and exits. Additionally, this system equips with access logic detection, including illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.
Our product features adjustable opening and closing speeds (0.2~1 seconds). Also, it will still open even during a power outage, and you can optionally equip it with a DC12V backup battery. On top of that, it is also capable of supporting voice functionality with an optional trumpet.
The working temperature of this product is between -35℃ and +80℃.
It could accept AC100~240V as its power supply input voltage, and DC24V as the input voltage of the controller. With this, the motor power is at 50W.
The relative humidity could reach up to 90% without condensation.

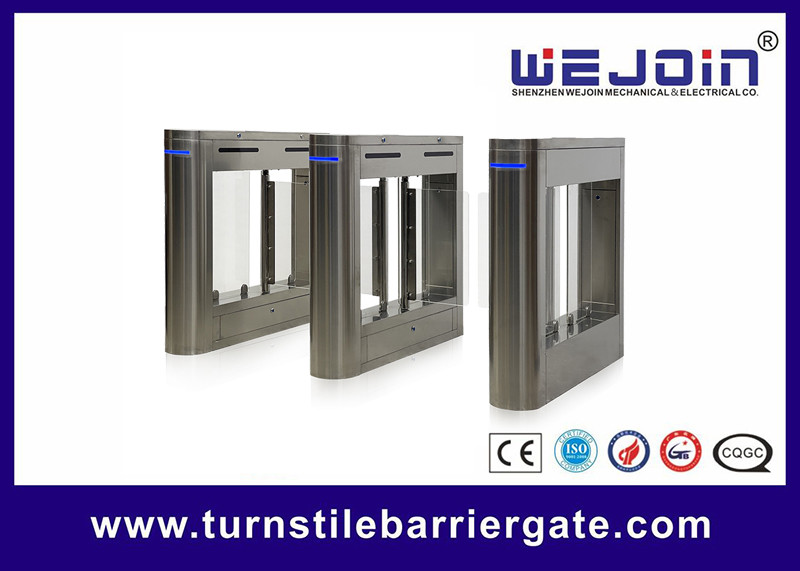

Our company has released a brand new intelligent swing barrier. Our product not only has precise craftsmanship, but also offers comprehensive functions and high reliability. This product is suitable for high-class communities, intelligent buildings, hotels, subway stations, gyms, or other high-level venues.
Moreover, our swing barrier is capable of being intergrated into an intelligent management system in order to enable intelligent access control.
Swing Barrier Gate Technical Support and Services:
We offer a comprehensive technical support and service package for our Swing Barrier Gate, including:
Packaging and Shipping for Swing Barrier Gate:
The swing barrier gate is packaged with bubble wrap and placed in a box. The box is then placed in another box with additional cushioning materials such as styrofoam, paper, or other suitable materials. The package is then sealed with tape and labeled with the appropriate shipping information.
The package is then shipped via a carrier of choice, such as FedEx, UPS, DHL, or other suitable carrier. The package must be tracked during transit to ensure that it arrives in a timely manner.
