| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO9001 |
| Model Number: | TBH02 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Working Humidity: | 90% (no Condensation) | Input Voltage Of Controller: | DC24V |
|---|---|---|---|
| Function: | Infrared Anti Pinch | Input Voltage Of Power Supply: | AC100~240V |
| Opening & Closing Speed: | 0.2~1 Seconds Adjustable | Size: | 1200*200*980mm |

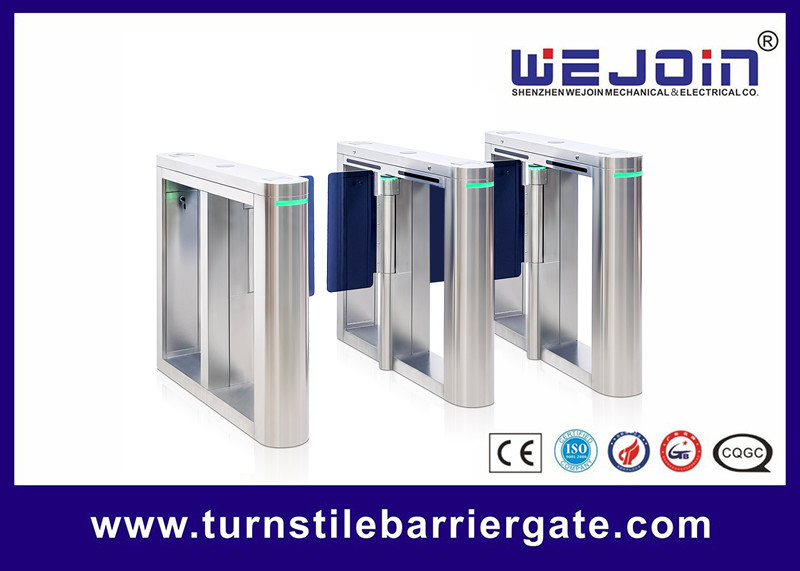

| Name: | Swing Barrier Gate | Service Life: | 3 Million Times |
| High Light: | infrared anti pinch swing turnstile,3 million times swing turnstile,infrared anti pinch swing arm gate |
||
The system is equipped with advanced brushless control technology to allow for the detection of the motor position in real time. With its physical anti-pinch protection, the system is able to adjust its sensitivity. Furthermore, it provides varied access mode settings for entrances and exits, such as card readers, free access, or simply forbidden entry. Lastly, it is able to detect access logic matters, including illegal intrusions, trailing passing, detention, and reverse passing, as well as infrared anti-pinch.
This product can be adjusted according to your preferences in terms of opening and closing speed. The range is between 0.2 and 1 second. It can open automatically even though the power is off, and you can also have a DC12V backup battery as an option. Moreover, it also supports voice function, and a trumpet can also be provided as an option.
This machine operates within a temperature range of -35℃ to +80℃. It requires a power supply of AC100-240V while the controller needs DC24V. The power used by its motor is 50W. The relative humidity at which this machine can properly operate is 90% with no condensation.
Intelligent venues in the form of high-class communities, buildings, hotels, and subway stations make pedestrian access management and control much more effective. The most striking examples of this being the high speed railway station, subway station, BRT station, and scenic ticket systems.
We provide technical support and service for our Swing Barrier Gate products. Our technical team is available to answer your questions and provide solutions. We can help you install, troubleshoot, and maintain the Swing Barrier Gate, as well as provide the necessary training to ensure your staff are well-trained and knowledgeable about the product and its features.
We will also provide regular updates and upgrades to ensure that your Swing Barrier Gate is always up to date and running efficiently. In addition, our team is available to provide assistance with any software or hardware issues that may arise. We strive to provide the best customer service and technical support possible.
Packaging and Shipping for Swing Barrier Gate:
Swing Barrier gate will be packaged safely with hard cardboard box or wooden box with waterproof material inside. It will be shipped with the fastest and most reliable shipping method available. A tracking number will be provided for customers to track the package and get an estimated date of delivery at the time of shipment.
