| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO9001, FCC, IECQ |
| Model Number: | E50 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 14 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Barrier Arm Length: | 3-6 Meters | Power Supply Input Voltage: | AC110±10%, Or AC220V±10% |
|---|---|---|---|
| Motor Power: | 240W MAX | MTBF: | 5,000,000 Times |
| Working Temperature (motor): | -35℃~ + 80℃ | Relative Humidity: | 30%~80%, No Condensation |
| Remote Control Distance: | ≤30 Meters | Arm Material: | Aluminium Alloy |
| High Light: | Folding Boom Intelligent Barrier,Speed Adjustable Intelligent Barrier,2s Intelligent Barrier gate |
||

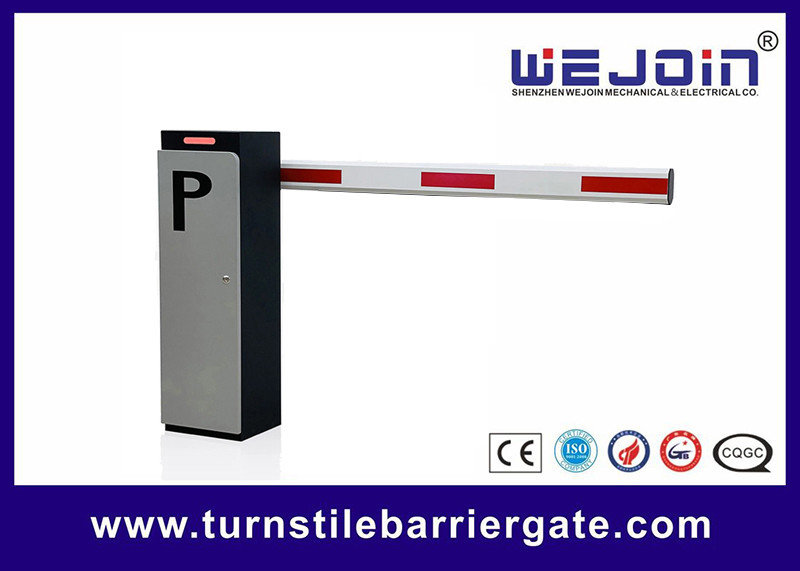

This product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It has a left-installed and right-installed version for use in parking lot entrance and exit control systems.
There are three types of this product: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.
The design of this product is springless, eliminating the need for hydraulic leveling. This makes it a maintenance-free solution. Additionally, the boom does not fall off when power is off, providing high levels of safety. With minimal operation required, the direction can be exchanged in as little as 30 seconds.
The remote services provided by the product are particularly convenient, as the Bluetooth control offers complete one-key functionality. The perfect combination of worm gear and gear makes it reliable and adds to its overall durability. It also supports external radar, loop detector, and infrared photocell anti-smashing functions with a built-in DC 12V power supply that provides power for the external radar.
The product also supports RS485 communication and RS485 offline connection. Additionally, a DC 24V power supply is an available option.
The motor can operate between -35°C to +80°C.
For AC voltage, the input voltage is either AC110±10%, or AC220V±10%. For DC voltage, it is DC24V±10%, 15A.
The motor power should not exceed 240W.
The relative humidity should be between 30% and 80%, with no condensation.
The minimum distance between the motor and the remote control is 30M.
The running speed is adjustable from 1.8 to 6 seconds.
The mean time between failures minimum is 5,000,000 times.
This intelligent air quality monitoring system is applicable to different scenes, such as shopping malls, industries, business centers, hotels, and hospitals.
It consists of several sensor modules which are used to measure the temperature, humidity, PM2.5, VOC, and carbon dioxide in the air.
These measurements will provide valuable insights, enabling users to gain a better understanding of their environment.
Intelligent Barrier is packaged and shipped in a safe and efficient manner. The product is first packaged in a sturdy cardboard box with a cushioning material to protect the product during transit. The box is then sealed and secured with packing tape before being shipped.
For international shipping, the product is placed in a wooden crate with foam padding to provide further protection. The crate is then securely sealed with nails and screws. It is then marked and labeled appropriately for international shipping.
The product is then shipped via a reliable carrier, such as UPS or FedEx, to ensure safe delivery. Upon arrival, the package is inspected for any damage or irregularities before being released to the customer.
