4.5m Straight Arm Electronic Barrier Gates For Smooth Traffic Flow

1 PCS
MOQ
Negotiation
Price
4.5m Straight Arm Electronic Barrier Gates For Smooth Traffic Flow
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Parking Lot
Warranty: One Year
Opeating Time: 2-4s
Motor Material: Aluminum Alloy
Net Weight: 39kg
Voltage: AC220V, AC110V
Communication Interface: RS485
Housing Material: Steel
Highlight:

Straight Arm Electronic Barrier Gates

,

4.5m Arm Electronic Barrier Gates

,

Traffic Flow electric boom barrier

Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO9001, FCC, IECQ
Model Number: E50D
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 14 working day
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Product Description

Product Description:

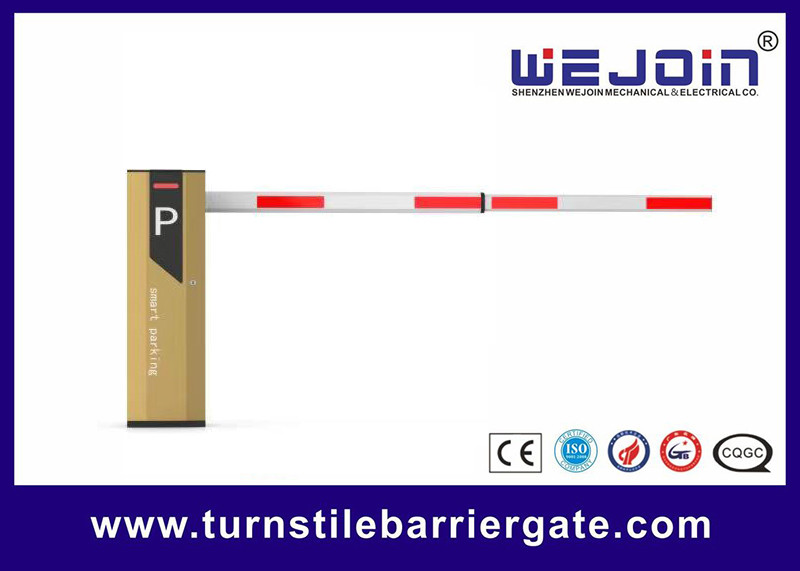

The product is comprised of four individual components: the cabinet, transmission mechanism, control unit, and boom. These parts are designed to be either left-installed or right-installed, providing flexibility for use in both parking lot entrance and exit control systems.



Features:

No Need for Spring Design

The design does not require springs, making it maintenance-free and eliminating the need for mechanical leveling.

High Safety Guarantee

The boom will remain secure even when the power is off, ensuring maximum safety.

Effortless Operation

The direction can be easily changed within just 30 seconds with minimal effort.

Convenient Bluetooth Control

The device can be controlled through Bluetooth with just one click, allowing for remote service.

Reliable Combination

The use of both worm gear and gear ensures a dependable and reliable performance.

Multi-Function Support

The device supports external radar, loop detector, and infrared photocell anti-smashing functions. It also has a built-in DC 12V power output for external radar power supply.

Versatile Communication Options

The device supports both RS485 communication and RS485 off-line connection.

Optional Power Supply

Users have the option to choose a DC24V power supply for their convenience.



Technical Parameters:

The motor in this equipment is designed to work within a temperature range of -35℃ to +80℃. It is capable of functioning at extreme temperatures, and its performance will not be compromised.

When it comes to power supply, the motor can accept an input voltage of AC110±10% or AC220V±10%. This allows for flexibility in selecting a power source depending on the availability of electricity in the given environment.

The controller, on the other hand, requires a DC24V±10%, 15A input voltage for optimal operation. This ensures that the controller has a stable and consistent power supply to effectively manage the motor's performance.

The motor's power is limited to a maximum of 120W, ensuring that it operates within safe and manageable parameters.

Air humidity levels of 30%~80% are considered ideal for this equipment. To prevent any potential condensation build-up, the recommended humidity level is below 80% to maintain optimal performance without any adverse effects on the motor.

The distance of the remote control is an impressive L≥30M, providing users with flexibility and convenience in activating the motor from a distance.

The running speed of this equipment is adjustable within a range of 2 to 4 seconds, allowing users to customize the motor's operation according to their specific needs.

The Mean Time Between Failures (MTBF) for this equipment is an impressive 3,000,000 times. This underscores the reliability and durability of this product.

Lastly, for ease of use, this equipment can work with a straight arm measuring up to 4.5m, providing users with flexibility in choosing and installing the appropriate arm length for their needs.



Applications:

The Uses of Barrier Gates

Barrier gates serve as a convenient and secure solution for managing the entry and exit of vehicles and personnel in various settings. Whether it be at high-speed toll gates, commercial plazas, residential areas, stations, or even customs checkpoints, these gates are highly versatile and effective in their purpose.

They are especially useful in regulating the flow of traffic, ensuring proper security measures are in place, and allowing for efficient management of entrances and exits. With their sturdy construction and advanced technology, these barrier gates are able to effectively control access and provide a smooth and seamless experience for those passing through.

In addition to their practical uses, barrier gates can also enhance the overall appearance and feel of a location. Their modern and sleek design can complement any environment, making them a great addition to any facility. Furthermore, their automated operation reduces the need for physical intervention, making them a convenient and hassle-free choice for managing entry and exit points.



Packing and Shipping:



Electronic Barrier Gates
Packaging and Shipping

Our Electronic Barrier Gates are carefully packaged to ensure safe transportation and delivery to our customers. Each gate is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transit.

We offer various shipping options to accommodate our customers' needs. Standard shipping is available for domestic and international orders, and expedited shipping is also available for those who need their barrier gates quickly.

For international orders, additional customs fees and duties may apply. Please check with your local customs office for more information.

Once your order has been processed and shipped, you will receive a tracking number via email to track your package's delivery status.

At Electronic Barrier Gates, we strive to provide our customers with the best product and service possible. If you have any questions or concerns about your order, please don't hesitate to contact us.
