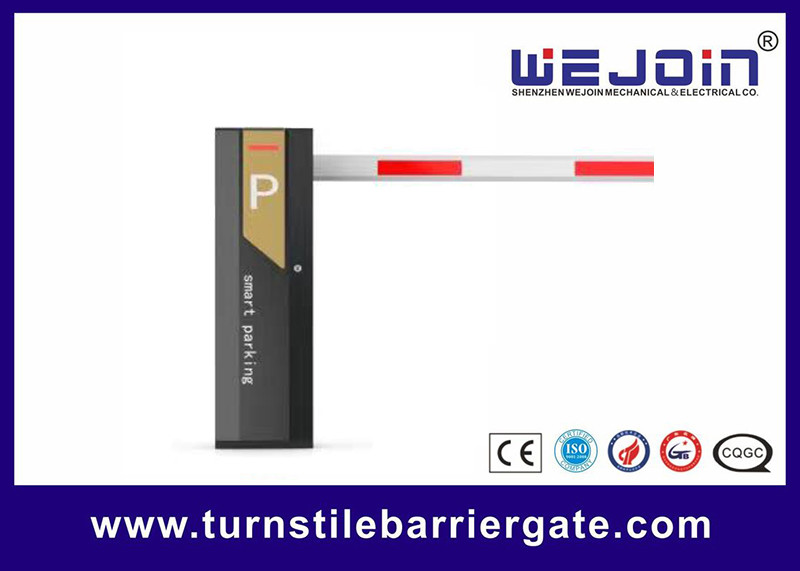

Steel Boom Barrier Gate With 2-4s Operating Time For Commercial Buildings

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO9001, FCC, IECQ
Model Number: E50D
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 14 working day
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Net Weight: 39kg
Max Power: 120w Relative Humidity: 30%~80%, No Condensation
Communication Interface: RS485 Application: Parking Lot
Voltage: AC220V, AC110V Housing Material: Steel
High Light:

Steel Boom Barrier Gate


Boom Barrier Gate For Buildings


RS485 electronic boom gate

Product Description

Steel Boom Barrier Gate with 2-4s Operating Time for Commercial Buildings

Product Description:

The product is comprised of four main components: the cabinet, transmission mechanism, control unit, and boom. It is available in both left and right installations, making it versatile for use in a variety of parking lot entrance and exit control systems.



Springless Design for Easy Maintenance

The power-saving design of our product eliminates the need for mechanical leveling, making it completely maintenance-free.

Enhanced Safety with Power Failure Protection

Our boom will not fall off even in the event of a power outage, ensuring high levels of safety at all times.

Effortless Directional Switching

With minimal operation, our boom barrier can switch directions in just 30 seconds, making it extremely convenient to use.

Convenient Bluetooth Control

Our product comes with Bluetooth control, allowing for easy one-key remote service for improved convenience.

Reliable Worm Gear and Gear Combination

The perfect combination of worm gear and gear ensures reliable performance and long-term durability.

Support for External Devices

Our boom barrier supports external radar, loop detector, and infrared photocell anti-smashing functions. It also has a built-in DC 12V power output for external radar power supply.

Flexible Communication Options

With support for RS485 communication and RS485 off-line connection, our product offers flexible communication options for a hassle-free experience.

Optional DC24V Power Supply

For added convenience, our boom barrier also offers the option for DC24V power supply.


Technical Parameters:

Working Conditions:

Working Temperature (Motor): -35℃~+80℃

Power Supply Input Voltage: AC110±10%, or AC220V±10%

Controller Input Voltage: DC24V±10%, 15A

Motor Power: 120W MAX

Relative Humidity: 30%~80%, No condensation

Distance of Remote Control: L≥30M

Running Speed: 2~4 seconds adjustable

MTBF: 3,000,000 times

Straight Arm: Available with 4.5m length



The barrier gates are specifically designed for managing the entry and exit of vehicles and personnel in various locations, including high-speed toll gates, commercial plazas, residential areas, stations, and customs checkpoints.


Packing and Shipping:

Packaging and Shipping for Electronic Barrier Gates

Our Electronic Barrier Gates are carefully packaged to ensure safe delivery to our customers. Each gate is placed in a sturdy cardboard box and secured with bubble wrap to prevent any damage during shipping.

For larger orders, the gates are packed in wooden crates for added protection. The crates are also reinforced with straps to keep the gates in place during transit.

Inside the package, you will find the necessary installation instructions and hardware for easy assembly. We also include a warranty card for your convenience.

Once your order is processed and packaged, it will be shipped to your desired location. We offer various shipping options, including standard and expedited shipping, to accommodate your needs.

For international orders, additional customs fees and taxes may apply. Please check with your local customs office for more information.

At Electronic Barrier Gates, we strive to provide the best packaging and shipping services to ensure your order arrives in perfect condition and on time. Thank you for choosing our product!
