| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO9001, FCC, IECQ |
| Model Number: | E50D |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 14 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Opeating Time: | 2-4s | Housing Material: | Steel |
|---|---|---|---|
| Voltage: | AC220V, AC110V | Relative Humidity: | 30%~80%, No Condensation |
| Application: | Parking Lot | Communication Interface: | RS485 |
| Max Power: | 120w | Motor Material: | Aluminum Alloy |
| High Light: | 39kg Fence Barrier Gate,Fence Barrier Gate for Moist Environments,Parking Lot fence gate bottom barrier |
||

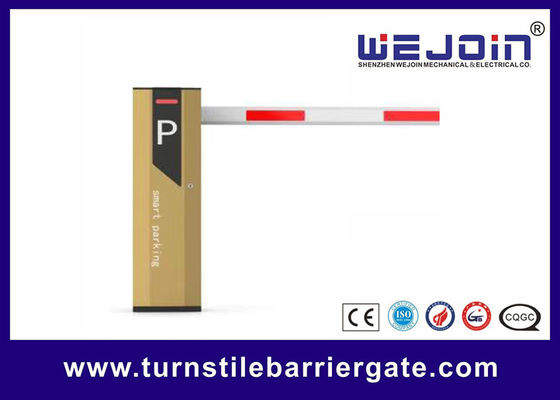

The product is comprised of four essential components, including a cabinet, transmission mechanism, control unit, and boom. These parts work together seamlessly to create a highly efficient and effective parking lot entrance and exit control system. It is suitable for use in both left-installed and right-installed configurations.
Cabinet: This sturdy and durable component serves as the main housing for the product, protecting the internal mechanisms and components.
Transmission Mechanism: Responsible for transferring power and motion to the boom, this part plays a crucial role in the smooth operation of the control system.
Control Unit: This component serves as the brain of the product, controlling and coordinating all the other parts to ensure accurate and efficient control of the parking lot entrance and exit.
Boom: The boom is the visible part of the product, extending and retracting to allow or restrict access to the parking lot entrance and exit.
The product is designed to be used in both left-installed and right-installed configurations, providing flexibility in different parking lot layouts. It is suitable for use in all types of parking lots, including commercial buildings, residential complexes, and public facilities.
The installation process is straightforward and can be done by a professional installer in a relatively short amount of time. Once installed, the product will function seamlessly, offering a reliable and efficient solution for controlling entrance and exit in parking lots.
No spring design, which eliminates the need for mechanical leveling, makes this product truly maintenance-free.
With a high level of safety, the boom will not fall off even when the power is turned off.
Minimal operation is required, as the direction of the boom can be easily exchanged in just 30 seconds.
Controlled via Bluetooth, this product offers convenient one-key remote service.
The perfect combination of worm gear and gear ensures reliable performance.
Additionally, this product supports the use of external radar, loop detector, and infrared photocell anti-smashing function. It also has a built-in DC 12V power output, which can be used for external radar power supply.
Users can also choose to connect via RS485 communication or RS485 off-line connection.
For even more flexibility, this product comes with an optional DC24V power supply.
The motor's working temperature can range from -35℃ to +80℃. It is important to ensure that the power supply input voltage is within the range of AC110±10% or AC220V±10%. Additionally, the controller requires a DC24V±10%, 15A input voltage. The motor has a maximum power of 120W.
The relative humidity for this system should be in the range of 30% to 80% to prevent condensation. The remote control has a range of at least 30 meters. The running speed for this device is adjustable between 2 and 4 seconds. The Mean Time Between Failures (MTBF) is 3,000,000 times, ensuring reliable and durable usage. This system is also available with a 4.5m straight arm.
The use of barrier gates is ideal for controlling the entry and exit of both vehicles and personnel, including those at high-speed toll gates, commercial plazas, residential areas, stations, and customs checkpoints.
Each Electronic Barrier Gate is carefully packaged to ensure safe delivery to our customers. The packaging process includes:
Once packaged, the gate will be shipped using a reliable and trusted shipping service. Customers can choose from various shipping options at checkout, including:
Shipping fees will vary based on the customer's location and selected shipping method. Once the gate has been shipped, customers will receive a tracking number to monitor the delivery status of their order.
At Electronic Barrier Gates, we take great care in packaging and shipping our products to ensure their safe arrival to our customers. We are committed to providing a hassle-free and convenient shopping experience. If you have any questions or concerns about your order, please don't hesitate to contact us.
