Features

Specifications

Operating Time: 1.8s~6s

Boom Type: Straight Folding Fencing

Housing Material: 304 Stainless Steel

Color: Gold

Application: Parking Lot

Warranty: 1 Year

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: E40

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 3-5 working days

Payment Terms: T/T,Western Union

Supply Ability: 10000 sets/month

Gallery

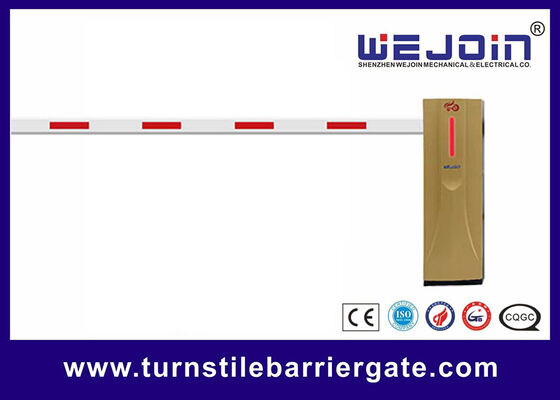

NonSpring Barrier Gate DZE4 Model with Springless Design Fast Running Speed 1.8 to 6 Seconds and 304 Stainless Steel Housing for Parking Control

Product Description

NonSpring Barrier Gate DZE4 Model Straight Boom 3 to 6 Meters

Fast running speed of 1.8 to 6 seconds for quick operation in parking control applications.

DZE4 Quick Operation Parameter Selection

Left-installed	Right-installed
1: Straight boom/folding Boom 3M	4: Straight boom/folding Boom 3M
2: Straight boom/folding boom 3.5M	5: Straight boom/folding boom 3.5M
3: Straight boom/folding boom 4M	6: Straight boom/folding boom 4M
7: Straight boom≥4.5M/folding boom≥4M/fence boom	8: Straight boom≥4.5M/folding boom≥4M/fence boom

DZE4 Boom Barrier Basic Features

Springless Design for Maintenance-Free Operation

The DZE4 adopts a springless mechanical structure, eliminating the need for traditional spring balancing and mechanical leveling adjustments.

Advantages:

No spring fatigue or breakage risk
Reduced mechanical maintenance requirements
Stable operation throughout the product lifecycle

Intelligent Auto-Reversing Safety Function

The DZE4 boom barrier is equipped with intelligent obstacle detection. When the boom encounters an obstacle during the closing process, it automatically reverses to prevent damage and improve vehicle and pedestrian safety.

Safety Benefits:

Fast response to obstacles
Reduced collision risk
Enhanced access control safety

Integrated Anti-Crush Protection and Power Output

The DZE4 supports multiple external safety accessories for comprehensive anti-smashing protection.

Compatible Devices:

Radar detector
Loop detector
Infrared photocell

The controller provides a built-in DC12V power output, allowing direct power supply for external devices such as radar sensors, simplifying system installation.

Common Malfunctions and Solutions

Malfunction: Controller displays IDLE

Possible Cause A:

The motor sensor plug is not plugged in.

Solution:

Insert the motor sensor plug securely.

Possible Cause B:

Motor sensor failure.

Solution:

Replace the motor.

Malfunction: Controller resets when barrier gate is running

Possible Cause A:

Short circuit inside the motor.

Solution:

Measure the resistance of each two wires (white, yellow and red) of the motor phase line using a multimeter to check if the resistance numbers are identical.

Possible Cause B:

Barrier gate controller failure.

Solution:

Replace the controller.
