Alarm High Speed Retractable Flap Barrier Auto Detection Half Height Turnstile

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY301
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Detail Information
Mechainsm Dimension: 282*286*875mm Wing Length: 300mm
Driving Motor: DC12V Brush Motor Running Time: 0.5s
Speed: 5~20s Photocell: Yes
High Light:

optical turnstile

,

half height turnstile


Product Description

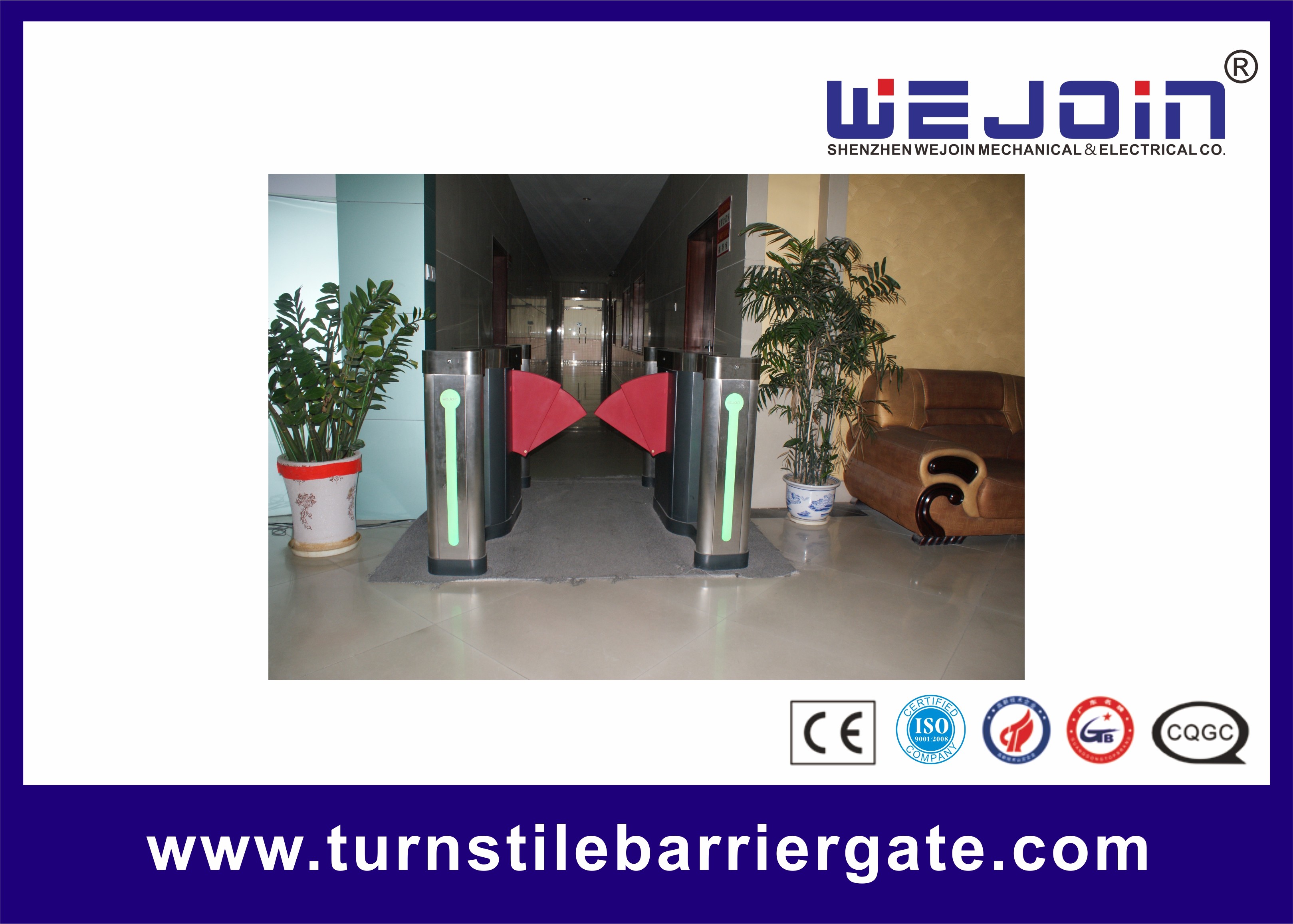

Alarm High Speed Retractable Flap Barrier Auto Detection Flap Gate



Applications:



High class communities, intelligent buildings, hotels, subway stations and other high level venues.



Introduction:



1.Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.

2.It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3.Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

4.Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.



Functions and features:


1. With function of self-examine and alarm, it is convinient for maintain and use.

2. Being able to program operation state by the small keyboard in the main board.

3. Arm will stop moving when it is blocked, which prevents pedestrains from being nipped or from hurt.

4. Arms are automatically locked until opening signal is reveiced.

5. Arms synchronization(adjustable).

6. Light and sound alarm is generated when the illegal invasion and the tail followed.

7. Automatically reset function: it will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.

8. The arms automatically open when power off and automatically colse when power is on, which accords with fire-fingting’s requirement.

9. Several reader devices are attachable.(IC,IkeD access control, fingerprint access control, barcode ticket access control, ficial identification access control, time attendance machine ect.)

10. One ditectin/bi-direction are option.



Specifications:



Model WJTY301
Cabinet dimension 1400*305*1020mm
Stretching-out flap length 440mm
The max lane width 900mm
Cabinet material cold rolled steel & aluminum alloy
Power supply AC220V±15%, AC110V±15% 50/60Hz
Motor voltage DC24V (brush motor)
Access device input voltage dry contact
Max flow rate 30~40 people per minute
Flap opening/closing time 0.5s ~ 1s
reset time when power on 2s
protection grade IP32
working environment outdoors (with shelter) and indoors.
working temperature -25°C ~ +50°C
