| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | ISO |
| Model Number: | WJTY201 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, , Western Union |
| Supply Ability: | 200PCS/week |
| Cabinet Material: | 304 Stainles Steel | Wing Type: | Arylic |
|---|---|---|---|
| Lane Wideth: | 600mm | Wing Wideth: | 300mm |
| Package: | Wooden | Transit Speed: | 30~40/min |
| High Light: | security turnstiles,half height turnstile |
||

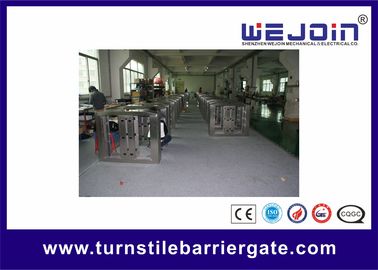

Access control card swipe flap turnstile / electric flap barrier with IR sensor
1. Self-checking function.
2. Working types:
2.1,bi-direction card reading;
2.2.one direction card reading and another prohibited;
3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on.
4. Arm open&close time can be set by user in control boards
5. Manager can set pass time in control boards.
6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card.
7. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately .
8. LED display passengers numbers.
9. Direction display guide passenger go or stop.
10. Control software regulate authorized passengers numbers.
11. Stable running with low- noise.
Products Series:
| Model Item |
WJTY201 | WJTY301 | WJTY311 |
| Material of Housing | 304 Stainless Steel | ||
| Material of Flap Door | Organic Glass, Resin, or PVC | ||
| Dimension of housing | 1200*270*1000 | 1450*315*1020 | 1400*305*1020 |
| Thickness of housing | 1.5mm | ||
| Max Width of Passage | 600 | 900 | 900 |
| Net weight | 70kg | 140 kg | 85 kg |
| Normal Life Span | 3 millions times | ||
| Communication Interface | Standard RS485(distance less than 1200 meters) | ||
| Transit speed | 30-40 persons/min | ||
| Power supply | 220V±10%, 110± 10% | ||
| Frequency | 50/60HZ | ||
| Working voltage of motor | DC24V | ||
| Time for opening or closing | 1s | ||
| Starting time after power on | 3s | ||
| Input interface | Dry contact signal or +12Vor pulse signal with width more than 100ms DC12V |
||
| Transit speed | 25~32 persons/min | ||
| Working temperature | -10°C~50°C | ||
| Working environment | Indoor / Outdoor (Shelter) | ||
| Relative humidity | ≤95%, no condensation | ||
