| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ801J |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Force: | Heavy Duty | Motor: | Die Casting Aluminum Alloy |
|---|---|---|---|
| Speed: | 3s,6s | Material: | Steel |
| Power: | 80W | Boom Type: | Straight,90degree Folding,180 Degree Folding,fence Boom |
| Delivery: | 3~5 Working Days After Payment Received | Voltage: | AC220V; AC110V |
| High Light: | parking lot arm gate,auto barrier gate system |
||

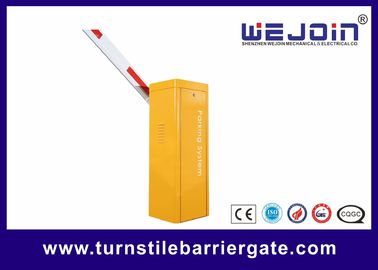

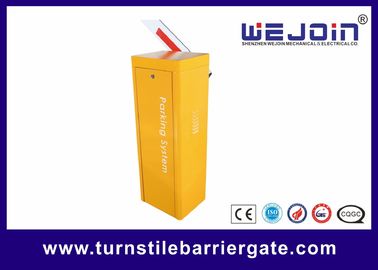

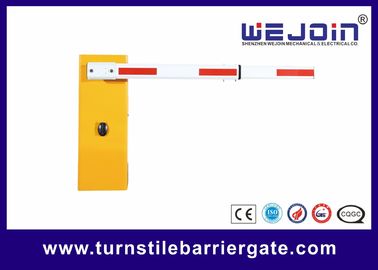

Economic Parking Barrier Gate System / Manual Release Electronic Boom Barrier Security
Quick Detail
|
Name |
Economic Barrier Gate |
Application |
Parking System |
|
Speed |
3s,6s |
Feature |
Manual release |
|
Rated Power |
80W |
Certificate |
CE, ISO |
|
Net Weight |
40KG |
Voltage |
AC220V, AC110V |
Functions & Features:
1. Wheel manual release.In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually.When power on,the motor will work normally.
2. Machine core with strong and double springs, make the machine core works more steadily.
3. Die-casting aluminum alloy motor,lrecise and good at thermal radiation.
4. Crank and rod structure makes the boom run placidly.
5. Double safety limit switches(photoelectricity limit switch and motor memory sensor)
6. Reversing on obstacle.
7. Auto-closing.
8. Interface for traffic light
9. Support the infrared photocell for anti-bumping function(oltional)
10. Traffic light interface(AC220V,can support lamp with 40w)
11.Wire control(switch signal)/Remote control(418MHZ)
12.Rs485 Communication module(optional)
13.Open,close control interface for parking system.
14.Provide limit state signal to parking system
Application:
Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls,
hospitals, stadiums, business centers,etc.
