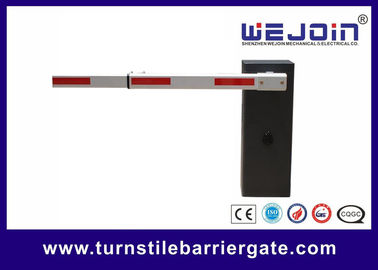

Card Reader Car Parking Barrier Gate Aluminum Alloy Motor With Loop Detector

1 set
MOQ
negociate
Price
Card Reader Car Parking Barrier Gate Aluminum Alloy Motor With Loop Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Motor Material: Aluminum Alloy
Operating Time: 3s, 6s
Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel
Color: Yellow
Application: Parking Lot
Highlight:

parking lot arm gate

,

auto barrier gate system

Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description



Parking Barrier Gate Quick Detail:



1.Wheel manual release

2.Machine core with strong and double spring

3.Die-casting aluminum alloy motor

4.Crank and rod structure makes the boom run placidly

5.Double safety limit switches

6.Reversing on obstacle

7.Auto-closing

8.Support the infrared photocell for antibumping function

9.Support external and internal vehicle loop detector

10.Traffic light interface

11.Wire control / remote control(418MHZ)

12.Digital limit, more precise

13.Open,close control interface for parking system

14.Provide limit state signal to parking system









Parking Barrier Gate Features:



Voltage AC220V±10%,AC110V±10%
Frequency 50/60HZ
Rated power 200w
Relative humidity ≤90%
Working temperature -35℃~+60℃
Housing dimension(W*D*H) 335*285*925mm
Enclosure rating IP54
MTBF 2500000 times
Weight 40 KG





Technical data:



Model speed Arm Type Max Arm Length Arm Dimension
801J-13 3s staight 4.5m 45*100mm
801J-16 6s 6m
801J-23 3s 90º folding 3m
801J-26 6s 5m
801J-33 3s 180º folding 3m
801J-36 6s 5m
801J-46 6s 2 fencing 4m
801J-56 6s 3 fencing 3.5m





Parking Barrier Gate Applications:

  • station
  • highway toll gate
  • high-grade residential area
  • commercial parking lots
  • enterprises and institutions



WEJOIN's Main Advantages



  1. Global leading company for barrier gate
  2. Master of core technology and innovation
  3. Intelligent quality manufacturing process and testing equipment



FAQ



Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please Click here and send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
