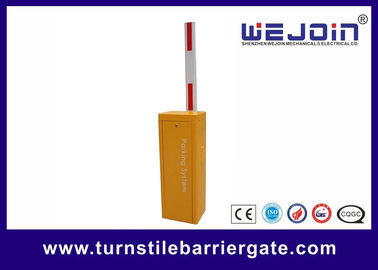

Electronic Barrier Gates Applications:
Technical data:
Model | speed | Arm Type | Max Arm Length | Arm Dimension |
801J-13 | 3s |
Staight (Telescopic arm is optional) |
4.5m | 45*100mm |
801J-16 | 6s | 6m | ||
801J-23 | 3s | 90º folding | 3m | |
801J-26 | 6s | 5m | ||
801J-33 | 3s | 180º folding | 3m | |
801J-36 | 6s | 5m | ||
801J-46 | 6s | 2 fencing | 4m | |
801J-56 | 6s | 3 fencing | 3.5m |
Electronic Barrier Gates Quick Detail:
1.Wheel manual release.
In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.
when power on,the motor will work normally.
2.Machine core with strong and double spring,make the machine core works more steadly.
3.Die-casting aluminum alloy motor,precise and good at thermal radiation.
4.Crank and rod structure makes the boom run placidly
5.Reversing on obstacle
6.Auto-closing
7.Support the infrared photocell for antibumping function(optional)
8.Support external and internal vehicle loop detector(optional)
9.Traffic light interface(ac 22v,can support lamp with 40w)
10.Wire control / remote control(418MHZ)
11.Digital limit, more precise
12.Open,close control interface for parking system
13.Provide limit state signal to parking system
Electronic Barrier Gates Features:
Voltage | AC220V±10%,AC110V±10% |
Frequency | 50/60HZ |
Rated power | 200w |
Relative humidity | ≤90% |
Working temperature | -35℃~+60℃ |
Housing dimension(W*D*H) | 335*285*925mm |
Enclosure rating | IP54 |
MTBF | 2500000 times |
Weight | 40 KG |
Pls choose spring according to the arm type and length.
Company Information
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
