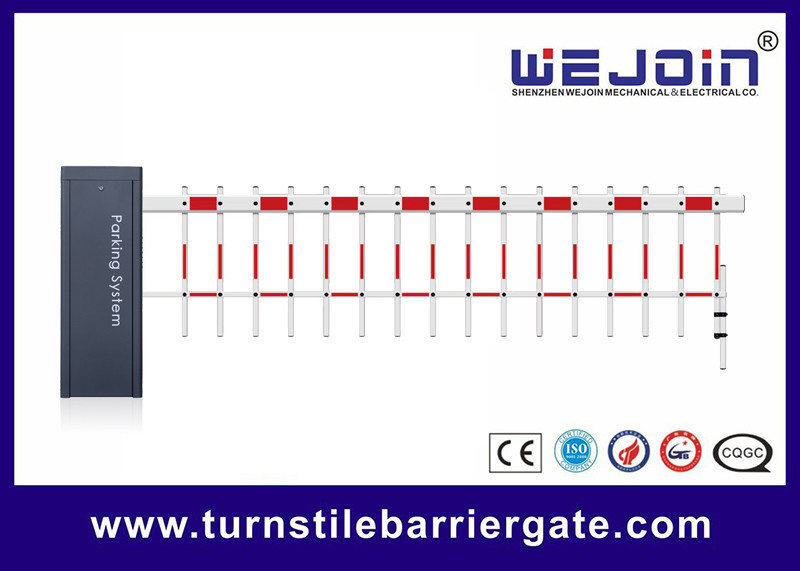

Car Park Electronic Barrier Gates Aluminum Alloy Motor Straight Folding Fencing Boom

Electronic Barrier Gates Applications:

• Public Transportation Stations – Used in bus terminals, subway stations, and train stations to regulate vehicle access.
• Highway Toll Gates – Installed at expressway entrances and exits to manage toll collection and traffic flow.
• High-End Residential Communities – Ensures secure entry and exit for residents while preventing unauthorized access.
• Commercial Parking Lots – Deployed in shopping malls, office buildings, and hotels to control vehicle movement and optimize space usage.
• Corporate & Institutional Facilities – Implemented in government buildings, hospitals, schools, and business parks to enhance security and parking management.

Technical data:

Electronic Barrier Gates Features:

Pls choose spring according to the arm type and length.

Electronic Barrier Gates Quick Detail:

1.Wheel manual release.

In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.

when power on,the motor will work normally.

2.Machine core with strong and double spring,make the machine core works more steadly.

3.Die-casting aluminum alloy motor,precise and good at thermal radiation.

4.Crank and rod structure makes the boom run placidly

5.Reversing on obstacle

6.Auto-closing

7.Support the infrared photocell for antibumping function(optional)

8.Support external and internal vehicle loop detector(optional)

9.Traffic light interface(ac 22v,can support lamp with 40w)

10.Wire control / remote control(418MHZ)

11.Digital limit, more precise

12.Open,close control interface for parking system

13.Provide limit state signal to parking system

Common Malfunctions and Solutions

Motor works but there is no reaction on the barrier arm

1. Check up the power supply and the fuse.

2. Check if the remote controller matches the radio receiver;or check up the battery inside and then change it if it is lack of power.

3. Check whether there is disturbance or not.

4. Check up the condition of photocell and loop detector.
