| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E10 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Fence Boom | Voltage: | AC 110V Or 220V |
|---|---|---|---|
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| Housing Color: | Yellow-white | Application: | Parking Solution |
| High Light: | auto barrier gate system,car park barriers |
||

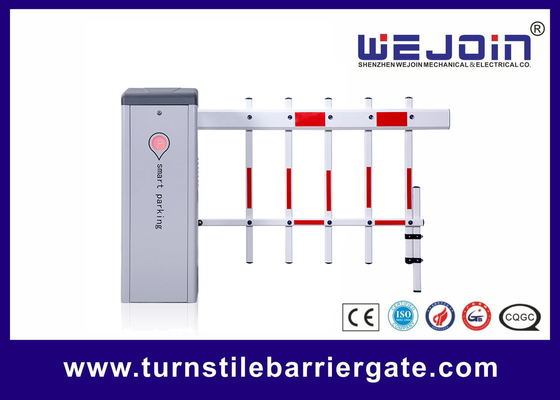

Heavy Duty Automatic Car Park Barrier Gate Barrier Parking Gate
Parking Barrier Gate Quick Detail:
The technology is applied to drive motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low temperature rise
# Standard traffic lights
# 3-5S speed adjustable
# yellow-green, dark grey + light grey and yellow-white color optional
WEJOIN Eco-Grade Servo Barrier Gate WJDZE
DC Brushless Servo Motor
Higher Stability, Longer Service Life and Easier Operation
Parking Barrier Gate Functions & Features
1 . No clutch design : open the barrier gate by manual hand wheel when power of.
2 . No limit switch design : the motor can detect the boom position automatically.
3 . Bi-direction boom holder design : left- installation and right-installation can be exchanged easily and quickly .
4 . Self-detect after power-on , open / close speed is adjustable .
5 . With auto-reversing on obstruction function .
6 . Infrared photocell interface and Loop detector interface is available .
7 . Built-in delay auto-closing function ,coordinated with counting function .
8 . With auto-aging test function .
Parking Barrier Gate Applications:
station
highway toll gate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
Parking Barrier Gate Warranty and Service Items
|
Model |
WJDZE (speed 3~5s adjustable) |
||||||
|
Running Speed |
3S |
4S |
5S |
5S |
5S |
5S |
5S |
|
Boom Type |
Straight |
Straight |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
4.5M |
5M |
6M |
5M |
4M |
4.5M |
4M |
|
Input Voltage |
AC220V±10%, AC110V±10% |
||||||
|
Frequency |
50/60HZ |
||||||
|
Motor Voltage |
DC310V |
||||||
|
Enclosure Rating |
IP54 |
||||||
|
Working Temperature |
-35°C ~ +85°C |
||||||
|
MTBF |
3 million times |
||||||
|
Traffic Flow Appication |
24 hours uninterrupted operation |
||||||
|
Max Motor Power |
120W |
||||||
|
Max Motor Speed |
24r/min |
||||||
|
Max Torque |
240N.m |
||||||
Keep the barrier gate clean.
Check the joints ever month in case of any loose parts.
WEJOIN's Main Advantages
Global leading company for barrier gate
Master of core technology and innovation
Intelligent quality manufacturing process and automatic flexible production
Global advanced manufacturing process and testing equipment
Servo,variable frequency,double speed,bi-direction motor and other leading technique
High speed and low speed coexist in motor
Intergral service network covering fist-tier and second-tier cities,and more under construction service network
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
