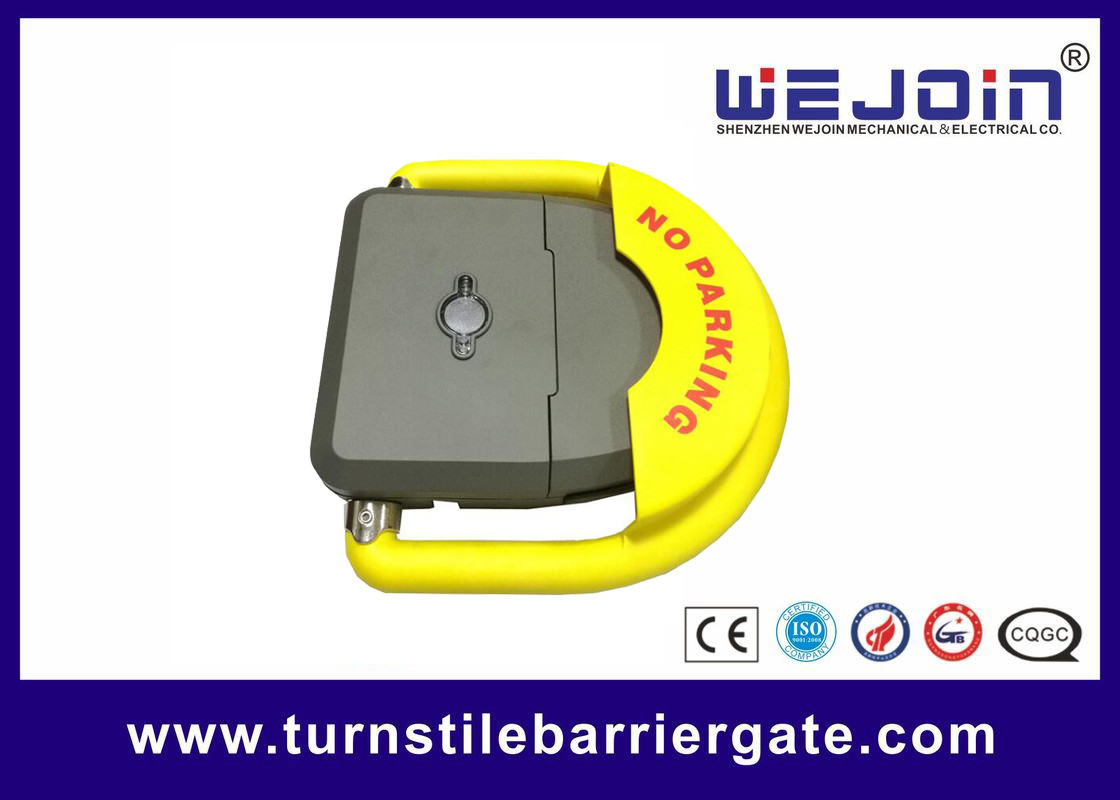

High quality heavy duty remote control car safety automatic parking lock
Parking Lock Technical Specification
|
Standard Voltage |
DC12V |
|
Battery Voltage |
DC12V, 7Ah |
|
Dimension |
357*370*82.5MM |
|
Operational Current |
0.4A |
|
Up to Down Time |
4~6 Seconds |
|
Vertical Position Height |
340MM |
|
Horizontal Position Height |
82.5MM |
|
Remote Control Distance |
15M |
|
Working Temperature |
-35°c~+55°c degree centigrade |
|
Maximum Bearing Weight |
5 tons |
|
Protection Grade |
IP68 |
Parking Lock Product Description
1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof
Parking Lock Functions & Features:
1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

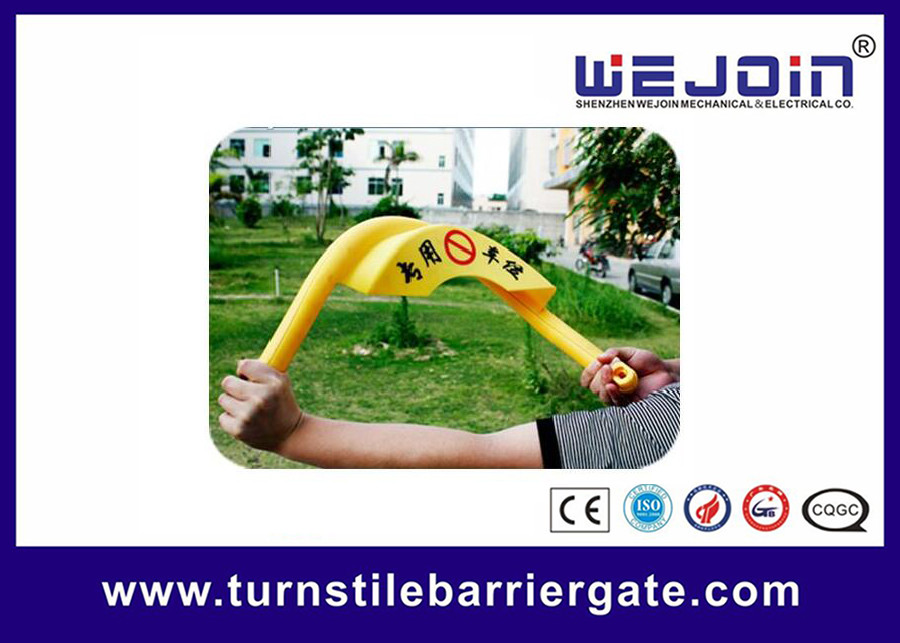

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto re-positioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without
key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
![]()
