Automatic Parking Space Lock 340mm Vertical Position Height IP68 Protection Grade

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: Western Union, T/T
Supply Ability: 10000 set / month
Contact Now
Detail Information
Current: 0.4A Running Time: 4~6s
Dimension: 357*370*82.5mm Warranty: 12 Months
Type: Car Parking Space Lock Product Name: Car Parking Lock

Product Description

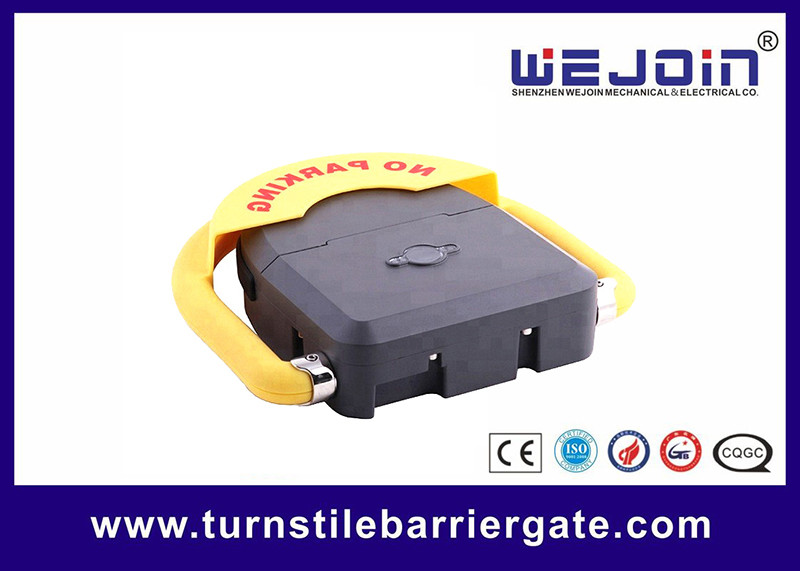

Automatic Remote Control Smart Car Parking Lock IP68 Protection Grade


Product Introduction
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class varnish with features of wearable, glossy and colorfast. The product has attributes like beautiful and novel structure designing, diversified functions, user-friendly operation, safe and durable features. It is well applied for car parking management in areas like high-end residences, shopping malls, hotels,airports and other commercial places.


Parking Lock Functions & Features:

1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto re-positioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.


Parking Lock Technical Specification

Standard Voltage


Battery Voltage

DC12V, 7Ah



Operational Current


Up to Down Time

4~6 Seconds

Vertical Position Height


Horizontal Position Height


Remote Control Distance


Working Temperature

-35°c~+55°c degree centigrade

Maximum Bearing Weight

5 tons

Protection Grade



Automatic Parking Space Lock 340mm Vertical Position Height IP68 Protection Grade
