Anti Theft Parking Space Lock 4 - 6s Running Time 357*370*82.5mm Dimension

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: Western Union, T/T
Supply Ability: 10000 set / month
Contact Now
Detail Information
Current: 0.4A Running Time: 4~6s
Dimension: 357*370*82.5mm Warranty: 12 Months
Product Name: Parking Lock Material: Die-casted Zinc Alloy

Product Description

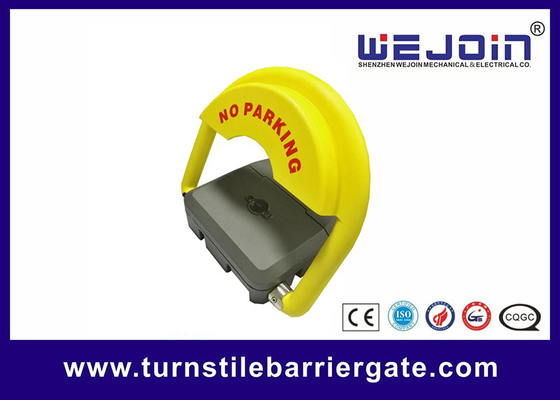

Waterproof remote control car parking space blocker anti-theft


Product Introduction
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class varnish with features of wearable, glossy and colorfast.

1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof


Product Applications

It is well applied for car parking management in areas like high-end residences, shopping malls, hotels,airports and other commercial places.


Technical Specification


Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*82.5MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35°c~+55°c

Maximum Weight Born: 5 tons

Protection Class: IP68


Product Features

1. Energy-saving:adopting well-known brand, the power of the parking lock can last at least half a year.

2. Safe:the power is of anti-reverse design and easy installing.

3. Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic:the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto re-positioning:the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to make it down.

6. Noise-free:bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7. Burglarproof:the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
