| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | ISO, |
| Model Number: | WJCS101 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| MAX Bearing Wieght: | 5 Tons | Color: | Red, Greay,Blue |
|---|---|---|---|
| OPerating Time: | 4~6s | Water Resistant: | Yes |
| IP Grade: | 68 | Current: | 0.4A |
| High Light: | automatic parking lock,car park locks |
||
High-strength waterproof car parking lot space lock energy saving
Quick Detail:
1. Name: Parking Lock
2. Protection Grade: IP68
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s
Main Features
1) Compressive capacity can up to 2000KG
2) Self Locking
3) Waterproof
4) Power-off upon external resistance
5) Power shortage indication(luminotron)
6) Reset after the alarm on external force
7) An-theft protection
Description:

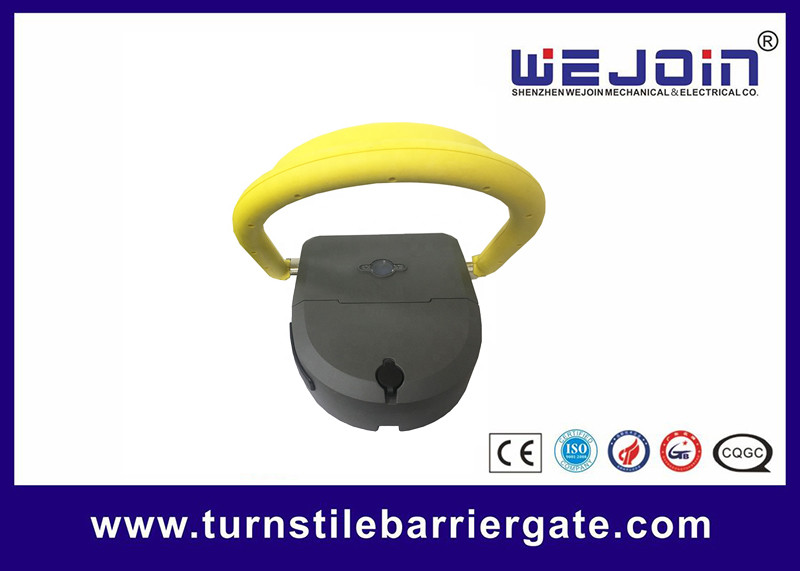

1. Remote control parking lock is a kind of device which can be automated lift, the role is to prevent someone else take your own car parking spaces, let your vehicle and park at your parking lock at any time.
2. Energy-saving; the battery is a best product in China
3. Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.
4 Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
5. Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
6. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
7. urglarproof:the mounting bolts are placed inside of the cabinet. No one can open it without key
Specification:
|
Model |
WJCS101 |
Net weight |
9kgs |
|
Remote control distance |
≥30m |
Battery Voltage |
DC12V,7Ah |
|
Working Temperature |
-35℃～+55℃ |
Protection Grade |
IP68 |
|
Vertical Position Height |
340mm |
Dimension |
357*370*82.5mm |
|
Max Bearing Weight |
5 t |
Running Time |
4s~6s |
