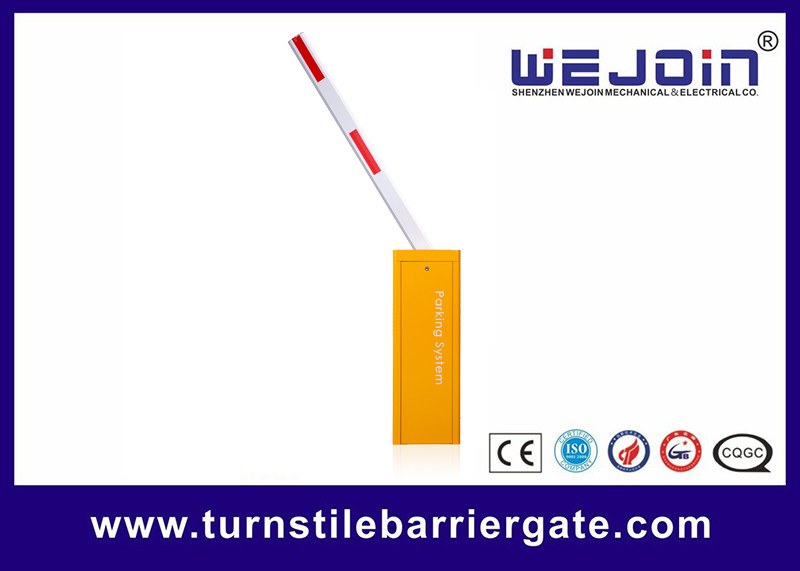

Straight Arm Auto Reverse Vehicle Barrier Gate 6m Boom

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 3s, 6s
Boom Type: Straight Folding Fencing Housing Material: 304 Stainless Steel
Color: Yellow Application: Parking Lot
High Light:

Straight Arm Vehicle Barrier Gate

,

Auto Reverse Vehicle Barrier Gate

,

6m Boom Parking Lot Barrier


Product Description

Max. 6m straight arm Boom Auto-reverse On Obstacle Intelligent Barrier



Technical Data

Model (WJDZ) 801J-13 801J-16 801J-23 801J-26 801J-33 801J-36 801J-46 801J-56
Speed 3s 6s 3s 6s 3s 6s 6s 6s
Arm Type

Straight

(Telescopic arm is optional)

90° folding 180° folding 2 fencing 3 fencing
Max Arm Length 4.5m 6m 3m 5m 3m 5m 4m 3.5m
Arm Dimension 45*100mm



Application

This Car Parking Barrier provides a secure and convenient solution of stopping unauthorized vehicles or giving access to authorized vehicles, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport, etc.



Manually Control When Power Is Off
If the power supply is off, you can manually open/close the barrier gate by the black lever.
Also, the boom can be manually locked in any position between horizontal and vertical by this level.



Automatically Check Status & Report Error
The barrier system will automatically check its operation status and show error code on its LED tube if an error occurred. This helps you quickly find out problems and find solutions.



Boom Auto-reverse On Obstacle
While moving down, the boom will automatically reverse immediately once it is obstructed by a vehicle or pedestrian, which protects the vehicle or person. The sensitivity is adjustable.



Straight Arm Auto Reverse Vehicle Barrier Gate 6m Boom 0
