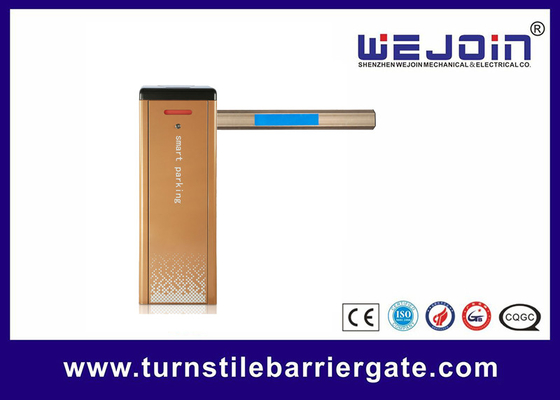

SS304 AC220V Straight Arm Barrier Gate TCP 200W For Access Control

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E30
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 1.5s, 3s, 4s, 5s, 6s Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel Color: Gold, Black
Application: Parking Lot Warranty: 1 Year
High Light:

SS304 Straight Arm Barrier Gate

,

AC220V Straight Arm Barrier Gate

,

200W Access Control Barrier Gate


Product Description

straight arm barrier gate for intelligent access control



Brief Introduction

This is our newly-produced barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetimes.



Barrier Gate Technical Data:

Model
WJDZE-BL (speed 1.5-6s adjustable)
Running Speed
1.5s
3s
4s
5/6s
6s
6s
6s
6s
Boom Type
straight
90 ° folding
180 ° folding
2 fence
3 fence
Max Boom Length
3m
4.5m
5m
6m
5m
4m
4.5m
4m
Input Voltage
AC220V±10%, AC110V±10%
Frequency
50/60HZ
Motor Voltage
DC24V
Enclosure Rating
Ip54
MTBF
2500000 times
Traffic Flow Application
1500 times / 24hours
Working Motor Power
-35°C~+85°C
Max Motor Power
200W
Max Motor Speed
24r/min


DC Brushless Barrier Gate WJDZE-BL
It can be equipped with WJDZE-BL(1.5-6s) mechanism
Left-installation and right-installation can be exchanged
Alarm against abnormal lifting boom
Support 24-hour continuous operation without heating protection
Speed will reduce when the boom moves to the limited position
RS485 communication, TCP/IP network port
