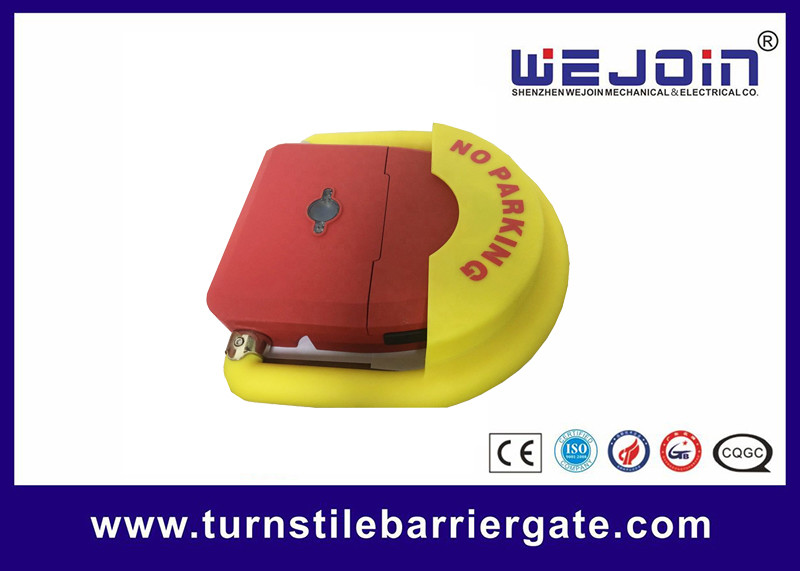

DC12V 7Ah 5 Tons Parking Space Lock 15m Remote Control Parking Lock

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJCS101
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Arm Color: Yellow Remote Control: YES
Remote Distance: <15m Arm Material: Plastic
Working Current: 0.4A Working Volatage: 12V
High Light:

DC12V 7Ah Parking Space Lock


5 Tons Parking Space Lock


15m Remote Control Parking Lock

Product Description

 Waterproof key remote control automatic parking space barriers




User Scope of products: car owners property management company Property Management Office parking local production house developers Automobile Dealers auto shop security companies, security shop


Technical Specification:

Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*82.5MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35~+55 degrees centigrade

Maximum Bearing Weight: 5 tons

Protection Grade: IP68


Main Spare Parts


Remote Controller

2 pcs


1 pcs

Manual Key (control barrier)

1 pcs

Keys (Open barrier housing)

2 pcs

fixing screws

4 pcs

Warranty card

1 pcs




1. Energy saving, long battery life

2. Anti-disconnection design, when you have false contacts or power shorts.

3. Durability, the enclosure is made of strong Zinc alloy, and the maximum weight it can bear is 5 tons.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto-position; an external force that could not change the position of the arm influence when it is vertical, when it is forced to a horizontal position, it will return it to vertical unless the user uses the remote control to put it horizontally.

6. Noise-free, motor load transmission design makes almost no noise. It is beneficial to the battery and motor longevity and lowers friction.

7. Anti-theft; mounting bolts are placed inside the cabinet. It cannot be opened without a key.

8. Easy installation: four prepared holes on the bottom of the housing make it easy to install.


DC12V 7Ah 5 Tons Parking Space Lock 15m Remote Control Parking Lock 0
