| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E10 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 sets/month |
| Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
|---|---|---|---|
| Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC 110V Or 220V |
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| High Light: | AC220V High Traffic Toll Gate,120W Straight Boom Toll Gate,24r/ Min Access Control Barrier Gate |
||

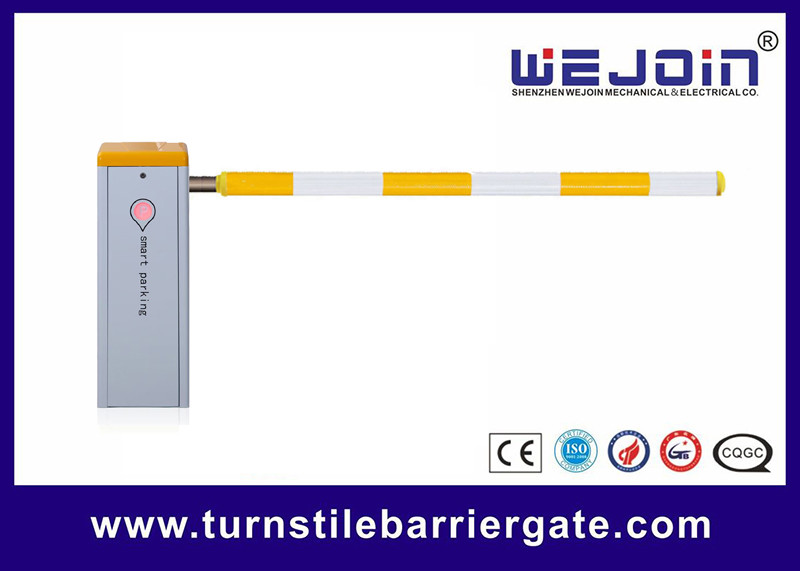

High traffic applications toll gate for vehicle access control
Toll Gate Technical Data
|
Model |
WJDZE1 (speed 1.8~6s adjustable) |
|||||||
|
Running Speed |
1.8S |
3S |
4S |
5/6S |
5/6S |
5/6S |
5/6S |
5/6S |
|
Boom-Type |
Straight |
Straight |
Straight |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
4M |
4.5M |
5M |
6M |
5M |
4M |
4.5M |
4M |
|
Input Voltage |
AC220V±10%, AC110V±10% |
|||||||
|
Frequency |
50/60HZ |
|||||||
|
Motor Voltage |
DC310V |
|||||||
|
Enclosure Rating |
IP54 |
|||||||
|
Working Temperature |
-35°C ~ +85°C |
|||||||
|
MTBF |
3 million times |
|||||||
|
Traffic Flow Application |
24 hours uninterrupted operation |
|||||||
|
Max Motor Power |
120W |
|||||||
|
Max Motor Speed |
24r/min |
|||||||
|
Max Torque |
240N.m |
|||||||
Toll Gate Quick Detail:
The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low-temperature rise
# Standard traffic lights
# 1.8-6s speed adjustable
# yellow-green, dark grey + light grey, and yellow-white color optional
Toll Gate Functions & Features
1 . No clutch design: open the barrier gate by manual handwheel when the power of.
2 . No limit switch design: the motor can detect the boom position automatically.
3 . Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4 . Self-detect after power-on, open/close speed is adjustable.
5 . With auto-reversing on obstruction function.
6 . Infrared photocell interface and Loop detector interface is available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8 . With auto-aging test function.
9 . NO / NC wire control signal inputs are optional.
