Place of Origin: | CHINA |
---|---|
Brand Name: | WEJOIN |
Certification: | CE ISO SGS |
Model Number: | E10 |
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | carton |
Delivery Time: | 12 working days after payment received |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 10000 sets/month |
Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
---|---|---|---|
Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC110V Or 220V |
Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
High Light: | AC110V Barrier Arm Toll Gate,IP54 Barrier Arm Toll Gate,No Clutch Barrier Boom Gate |

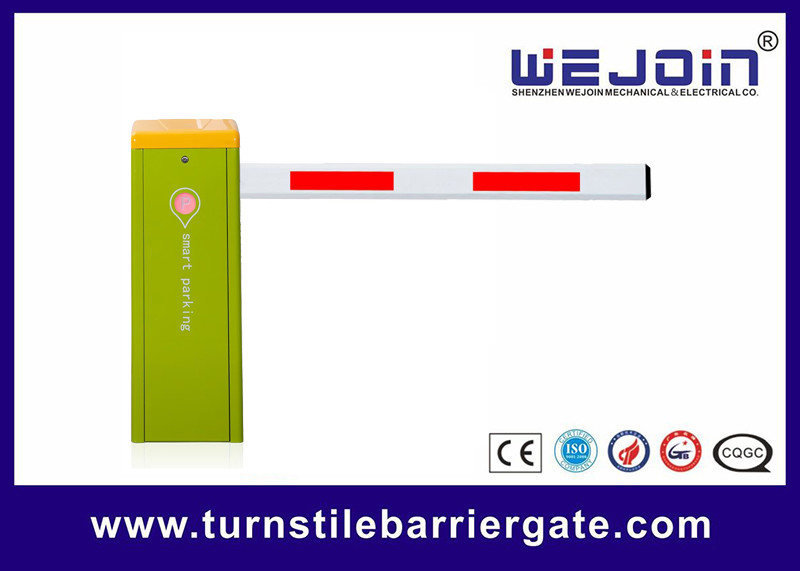

Fast gate operation barrier arm toll gate for vehicle access control
Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing
technology, no limit switch design, to realize non-adjust of the mechanism, adjustable speed, automatic speed reduction, ext. In
this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer
lifetimes.
Toll Gate Technical Data
Model |
WJDZE1 (speed 1.8~6s adjustable) |
|||
Running Speed |
1.8S |
3S |
4S |
5/6S |
Boom-Type |
Straight |
Straight |
Straight |
Straight |
Max Boom Length |
4M |
4.5M |
5M |
6M |
Input Voltage |
AC220V±10%, AC110V±10% |
|||
Frequency |
50/60HZ |
|||
Motor Voltage |
DC310V |
|||
Enclosure Rating |
IP54 |
|||
Working Temperature |
-35°C ~ +85°C |
|||
MTBF |
3 million times |
|||
Traffic Flow Application |
24 hours uninterrupted operation |
|||
Max Motor Power |
120W |
|||
Max Motor Speed |
24r/min |
|||
Max Torque |
240N.m |
Toll Gate Functions & Features
1 . No clutch design: open the barrier gate by manual handwheel when the power of.
2 . No limit switch design: the motor can detect the boom position automatically.
3 . Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4 . Self-detect after power-on, open/close speed is adjustable.
5 . With auto-reversing on obstruction function.
6 . Infrared photocell interface and Loop detector interface is available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
