| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E10 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 sets/month |
| Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
|---|---|---|---|
| Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC110V Or 220V |
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| High Light: | AC110V Barrier Operator Toll Gate,24r/ Min Toll Gate,120W Entrance Barrier Gate |
||

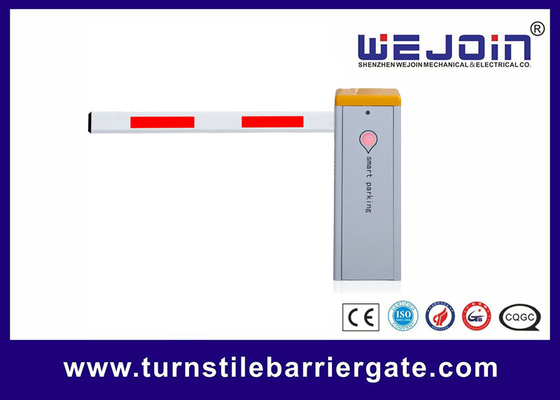

Cost-effective barrier operator Toll Gate for vehicle access control
Toll Gate Technical Data
|
Model |
WJDZE (speed 3~5s adjustable) |
||
|
Running Speed |
3S |
4S |
5S |
|
Boom-Type |
Straight |
Straight |
Straight |
|
Max Boom Length |
4.5M |
5M |
6M |
|
Input Voltage |
AC220V±10%, AC110V±10% |
||
|
Frequency |
50/60HZ |
||
|
Motor Voltage |
DC310V |
||
|
Enclosure Rating |
IP54 |
||
|
Working Temperature |
-35°C ~ +85°C |
||
|
MTBF |
3 million times |
||
|
Traffic Flow Application |
24 hours uninterrupted operation |
||
|
Max Motor Power |
120W |
||
|
Max Motor Speed |
24r/min |
||
|
Max Torque |
240N.m |
||
Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing
technology, no limit switch design, to realize non-adjust of the mechanism, adjustable speed, automatic speed reduction, ext. In
this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer
lifetimes.
Toll Gate Applications:
station
highway tollgate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
WEJOIN Profile
Shenzhen Wejoin Mechanical & Electrical Co.(Its predecessor is Shenzhen Wejoin Machinery & Electrical Technology Co., Ltd), which was established in March 2004. It is the first national high-tech enterprise to specialize in research and development, manufacture, and sales of intelligent access control products in China. WEJOIN was awarded Brand Business Enterprise of Guangdong province, the enterprise with independent innovation product of Shenzhen City, one of the most potential branding enterprises in Shenzhen, one of the largest manufacturers in access control and management product, a well-known manufacturer in the world. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, full height sliding barrier, gate operators, etc.
