Place of Origin: | CHINA |
---|---|
Brand Name: | WEJOIN |
Certification: | CE ISO SGS |
Model Number: | E10 |
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | carton |
Delivery Time: | 12 working days after payment received |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 10000 sets/month |
Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
---|---|---|---|
Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC 110V Or 220V |
Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
High Light: | No Clutch Traffic Barrier Gate,AC220V Traffic Barrier Gate,6S Fence Boom Barrier Gate |

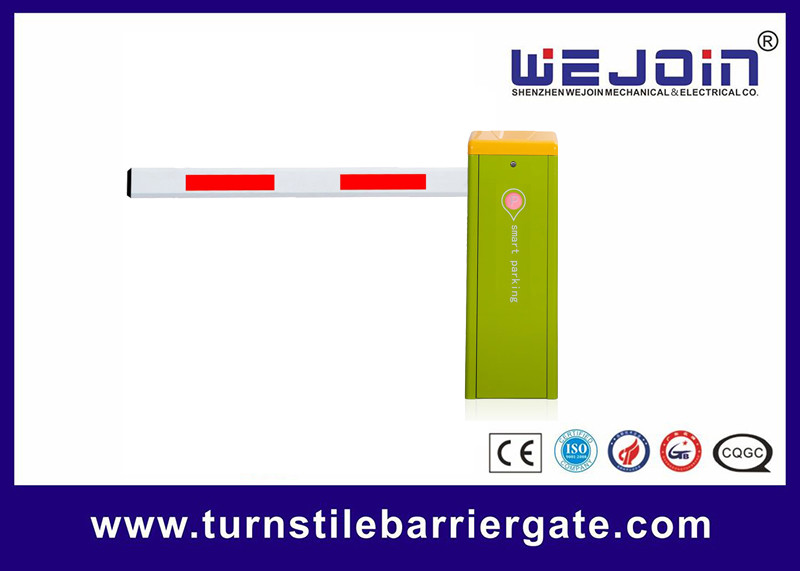

Most affordable barrier gate for efficiently manage vehicle traffic
Toll Gate Applications:
station
highway tollgate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
Toll Gate Technical Data
Model |
WJDZE (speed 3~5s adjustable) |
||
Running Speed |
3S |
4S |
5S |
Boom-Type |
Straight |
Straight |
Straight |
Max Boom Length |
4.5M |
5M |
6M |
1. Working temperature (motor):-35° C + 85° C
2. WorkingPower: 220V±10%, 110V±10%
3.Motor Power: 120WMAX
4.Humidity:彡90% RH
5. Distance of remote control:L>30M
6.Insulation Grade: F
Functions & Features
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. No limit switch design: the motor can detect the boom position automatically.
3. Self-detect after power-on, open/close speed is adjustable.
4. With auto-reversing on obstruction function.
5. Infrared photocell interface and Loop detector interface are available.
6 . Built-in delay auto-closing function ,coordinated with counting function .
7. With auto-aging test function.
8. NO / NC wire control signal input is optional.
