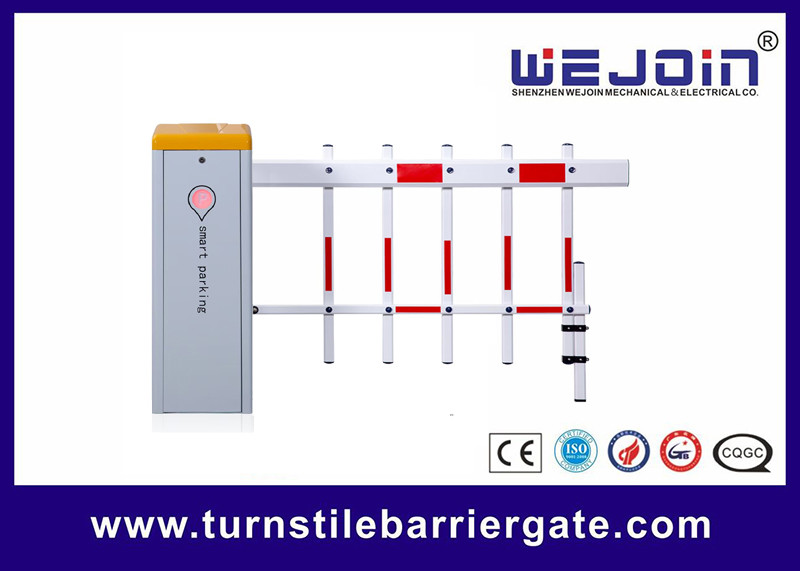

Straight Boom AC110V Toll Barrier Gate Garages Fence Boom Barrier Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E10
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Detail Information
Housing Color: Yellow-green Boom Type: Straight Boom,fence Boom
Optional Accessories: Loop Detector,Infrared Photocell,etc Voltage: AC110V Or 220V
Boom Length: Max 6M (customized) Warranty: 2 Year
High Light:

Straight Boom Toll Barrier Gate

,

AC110V Toll Barrier Gate

,

Garages Fence Boom Barrier Gate


Product Description

Nice toll barrier gate for garages in large business complexes



Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage, or not accordant to safety electric using standard.
4.3. The user installs or uses the product in the wrong methods, cause damage to the appearance of the product.
4.4.Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.



Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. And change new springs after running 500,000 times (or 12 months), to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew them.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.



DZE Series Barrier Gate Spring Selection Table

Boom-Type

Boom Length

Meter: M

Spring Diameter

∅ (mm)

Fence Boom,

Two-levels

4.5 ≥ L ≥ 4.3

∅6.0 + ∅5.5

4.3 > L ≥ 3.8

∅6.0 + ∅5.5

3.8 > L ≥ 3

∅5.5 + ∅4.5

3 > L

∅4.5 + ∅4.5

Fence Boom,

Three-levels

4 ≥ L ≥ 3.8

∅6.8 + ∅5.5

5.3 ≥ L ≥ 4.3

∅5.5 + ∅4.5

3.8 > L ≥ 3.3

∅6.0 + ∅5.5

3.3 > L ≥ 2.5

∅5.5 + ∅4.5
