| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E10 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 sets/month |
| Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
|---|---|---|---|
| Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC 110V Or 220V |
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| High Light: | Fence Boom Aluminum Arm Barrier,DC310V Aluminum Arm Barrier,24r/ Min Automatic Parking Boom Gate |
||

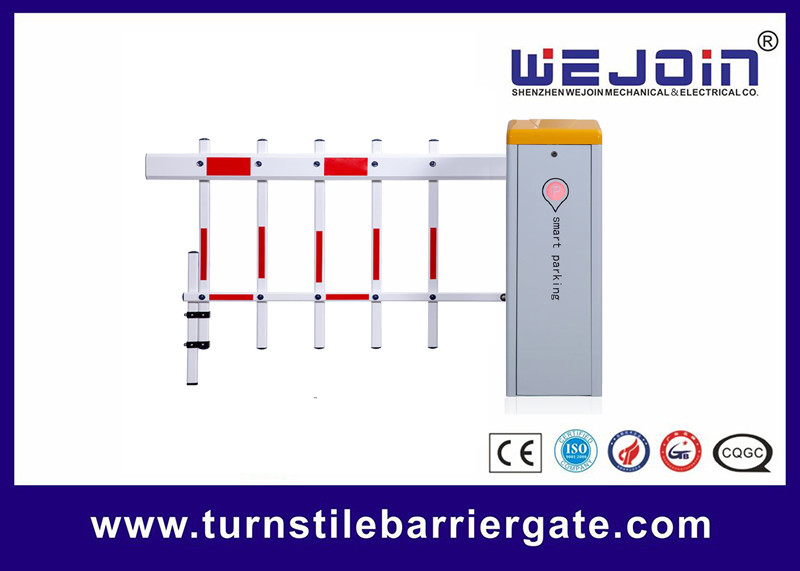

Aluminum arm barrier for one-way lane, or for two way traffic
Toll Gate Technical Data
| Model | WJDZE (speed 3~5s adjustable) | |||
| Running Speed | 5s | 5s | 5s | 5s |
| Boom-Type | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 5m | 4m | 4.5m | 4m |
| Input Voltage | AC220V±10%,AC110V±10% | |||
| Frequency | 50/60HZ | |||
| Motor Voltage | DC310V | |||
| Enclosure Rating | IP54 | |||
| Working Temperature | -35°C~+85°C | |||
| MTBF | 3 million times | |||
| Max Motor Power | 120W | |||
| Max Motor Speed | 24r/min | |||
| Max Torque | 240N.m | |||
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
WEJOIN's Main Advantages
1.The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
