Yellow Parking Reservation Lock 0.4A Parking Lot Equipment DC 12V

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJCS101
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Dimension: 357*370*82mm Max Weight Bearing: 5 Tons
Battery I Rechargable: Yes Package: Carton
IP Grade: 68 Water Resistant: Yes
High Light:

parking reservation lock


car park locks

Product Description


Yellow Parking Reservation Lock 0.4A Parking Lot Equipment DC 12V



Technical Specification:


  1. Standard Voltage: DC12V
  2. Battery Voltage: DC12V, 7Ah
  3. Dimension: 357*370*82.5MM
  4. Operational Current: 0.4A
  5. Up to Down Time: 4~6 Seconds
  6. Vertical Position Height: 340MM
  7. Horizontal Position Height: 82.5MM
  8. Remote Control Distance: 15M
  9. Working Temperature: -35~+55 degree centigrade
  10. Maximum Bearing Weight: 5 tons
  11. Protection Grade: IP68


Functions & Features:

  1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
  2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
  3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
  4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
  5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.

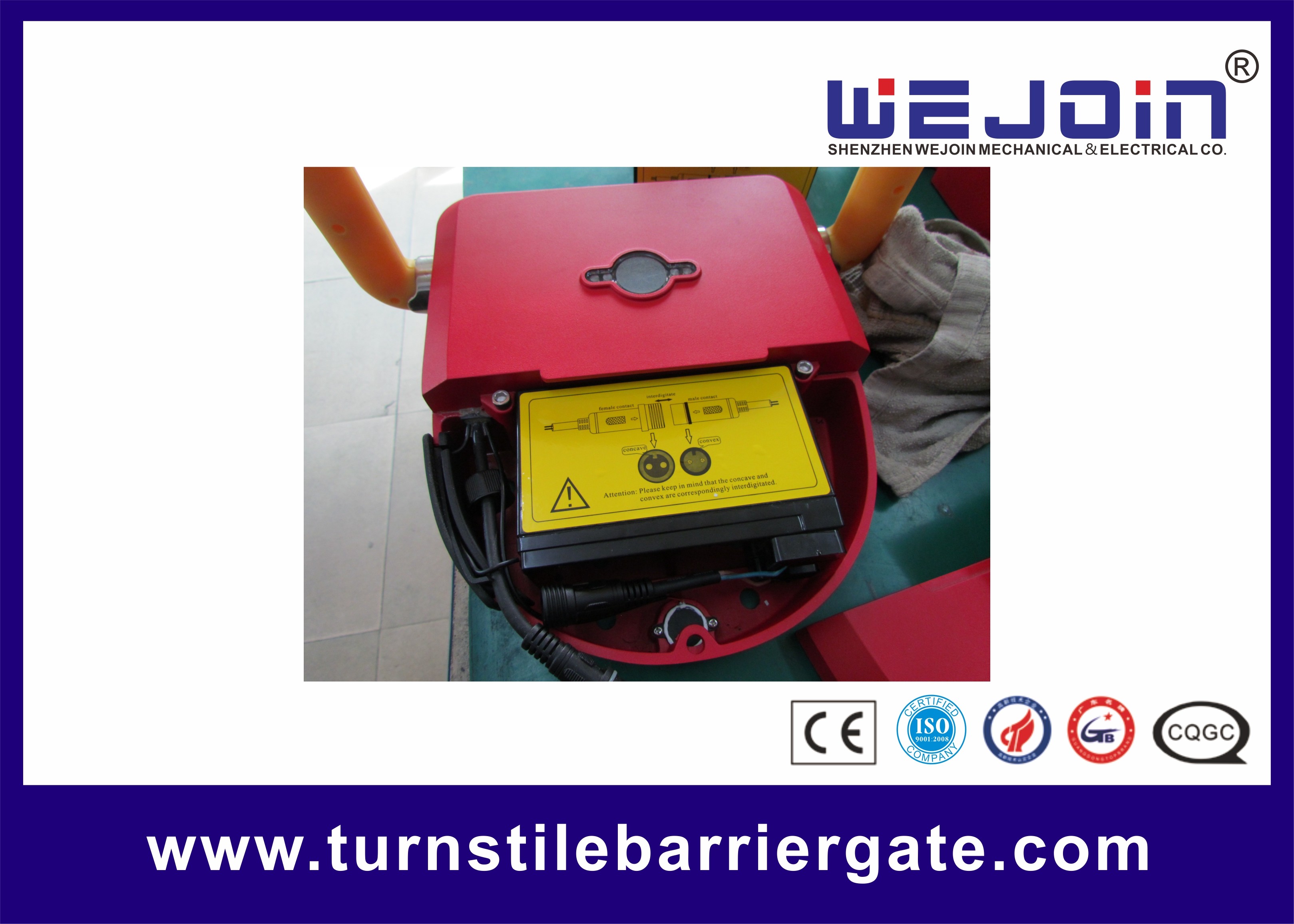

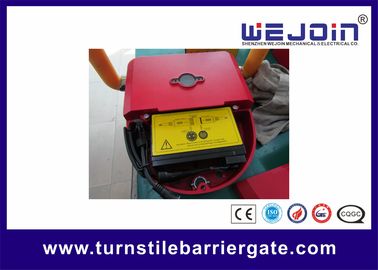

Parking Lock When Arm Up


Yellow Parking Reservation Lock 0.4A Parking Lot Equipment DC 12V 0
