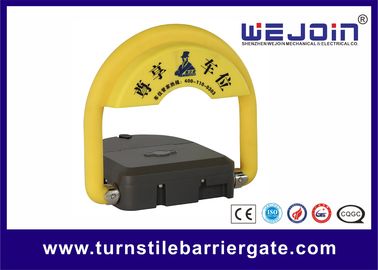

Easy Installation Automated Car Lock System For Parking Lot , DC 12Volt

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJCS101
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Carton
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Standard Voltage: 12V OPerational Current: 0.4A
Protection Grade: IP 68 Net Weight: 8 Kg
UP To Down TIme: 4~6s Waterproof: Yes
High Light:

parking reservation lock


car park locks

Product Description


Easy Installation Automated Car Lock System For Parking Lot , DC 12Volt




Remote control parking lock is a kind of device which can be automated lift, the role is to prevent someone else take your own car parking spaces, let your vehicle and park at your parking lock at any time.


1. Energy-saving; the battery is a best product in China.

Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.



2. Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.


3. Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.


4. Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.


5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.


6. Fixing by Four expansion screws, using internal security design, and the installation location of the host expansion screws inside the shell, only with a key to open the back cover before installation, eliminating the theft risks when parking lock installed outdoors





Model WJCS101
 Remote control distance ≥30m
 Standard Voltage  DC12V
Working Temperature -35℃~+55℃
Vertical Position Height 340mm
Max Bearing Weight  5 t
Net weight 9kgs
Battery Voltage DC12V,7Ah
Operational Current  0.4A
Protection Grade IP68
Dimension 357*370*82.5mm
Running Time 4s~6s


Waterproof :


Easy Installation Automated Car Lock System For Parking Lot , DC 12Volt 0





User Scope of products: car owners property management company Property Management Office parking local production house developers Automobile Dealers auto shop security companies, security shop
