| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | DZJ |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Motor Material: | Aluminum Alloy | Operating Time: | 3s, 6s |
|---|---|---|---|
| Boom Type: | Straight, Folding, Fencing | Housing Material: | 304 Stainless Steel |
| Color: | Yellow | Application: | Parking Lot |
| High Light: | High Security boom barrier gate,6m boom barrier gate,Intelligent Parking Lot Barrier Gate |
||

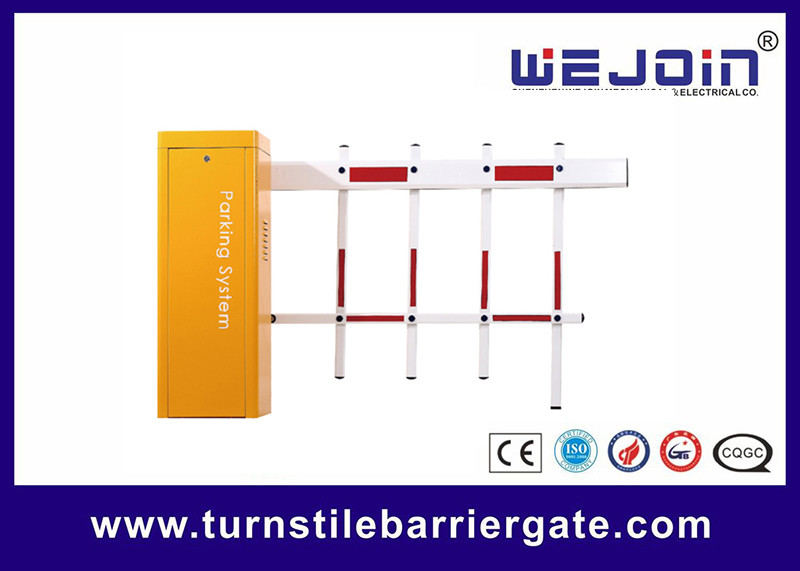

High Security 2 fence boom intelligent barrier gate for parking lot
Parking Barrier Gate Motor speed and boom type:
|
Maximum Straight Boom Length |
3s/4.5m, 6s/6m |
|
Open/Close Time |
3s, 6s |
|
Voltage |
AC220V |
|
Frequency |
60HZ |
|
Working Temperature |
-35°C~60°C |
|
Housing Dimension |
335*285*925mm |
|
MTBF |
2,500,000 times |
Mechanical characteristics:
1.Precise automatic tracking and balancing mechanism to achieve zero static force at any position,thus minimizing drive power and extending body life.
2.The cabinet is made of an advanced waterproof structure and anti-aging outdoor spray treatment, which is durable and non-fading.
Electrical characteristics:
1.Magnetic induction Hall device for stroke control, non-contact operation, no wear offset.
2.Adopt lifting timeout and motor overheat protection to prevent abnormal damage to the barrier gate.
Movement performance characteristics:
1,special transmission structure: no gear,no belt transmission, no maintenance,stable use, longer life.
2,non-equal speed motion mechanism,start fast, slow stop,run more stable.
3,all link joints are mounted with bearings and filled with antifreeze oil (stable use in the north and south).
4,the structure design is reasonable, so that the brake lever can always keep running in the 90-degree range, with no need to adjust the vertical and horizontal position.
