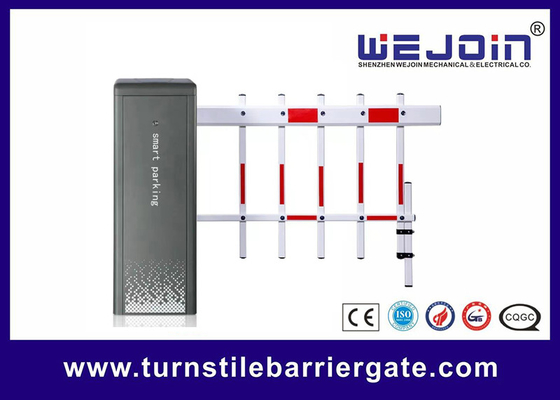

DC24V power supply motor driven stable operation anti-smashing parking barrier gate
|
Model |
DZE-BL-I |
|||
|
Running Speed |
6s |
|||
|
Boom Type |
2 Fence |
|||
|
Max Boom Length |
4.5m |
|||
|
Input Voltage |
AC220V±10%, AC110V±10% |
|||
|
Frequency |
50/60HZ |
|||
|
Max Motor Power |
200W |
|||
|
Max Motor Speed |
40r/min |
|||
|
Working Temperature |
-35°C∼+85°C |
|||
|
Enclosure Rating |
IP54 |
|||
|
MTBF |
2,500,000 times |
|||
|
Traffic Flow Application |
1500 times/24hours |
|||
Barrier Gate Operating Environment Requirements
Please transport, use and store the device within the allowable humidity and temperature range.
Please do not let any liquid flow into the device.
Please install the device in a well-ventilated place, and do not block the vents of the device.
Please do not press hard, vibrate violently or soak the equipment.
Please use the factory packaging or materials of the same quality when shipping the equipment.
It is recommended to ground via the grounding hole on the device to improve the reliability of the device.
Boom Barrier Basic Features:
1. Motor driven, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times, spring life 500,000 times.
2. With auto-reversing on the obstruction function, the boom will auto-reverse when meeting obstacles.
3. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.
4. Support RS485 communication or RS485 offline connection.
5. DC24V power supply is optional.
