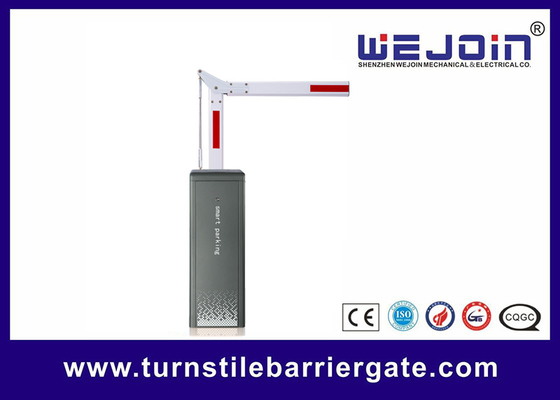

90-degree folding boom barrier up speed 3S parking barrier for basement parking
Model |
DZE-BL-I |
|||
Running Speed |
6s |
|||
Boom Type |
90-degree folding |
|||
Max Boom Length |
5m |
|||
Input Voltage |
AC220V±10%, AC110V±10% |
|||
Frequency |
50/60HZ |
|||
Max Motor Power |
200W |
|||
Max Motor Speed |
40r/min |
|||
Working Temperature |
-35°C∼+85°C |
|||
Enclosure Rating |
IP54 |
|||
MTBF |
2,500,000 times |
|||
Traffic Flow Application |
1500 times/24 hours |
Folding boom installation
Step 1. Fix the boom fixing plate on boom with 2pcs of M12*70mm hexagon screw.
Step 2. Hold the fixing plate by hand, then lift up the boom vertically and install it on the boom holder. And then install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Step 3. Fix the rod and connecting bearing on the support board components with screw.
Step 4. Loosen the bolsters with right-hand and left-hand screw, rotate the stainless steel pulling rod then adjust the horizontal and vertical of the boom; after adjustment, lock the bolsters with right-hand and left-hand screw.
Boom Barrier Basic Features:
1. Motor driven, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times, spring life 500,000 times.
2. With auto-reversing on the obstruction function, the boom will auto-reverse when meeting obstacles.
3. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.
4. Support RS485 communication or RS485 offline connection.
5. DC24V power supply is optional.
6. DC Brushless motor is more powerful and no maintenance.
7. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.5 seconds to 6 seconds.
