| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO |
| Model Number: | E30 |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 7 working day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Name: | Boom Barrier Gate | Material: | 304 Stainless Steel |
|---|---|---|---|
| Color: | Gold | Motor Power: | 180W MAX |
| MTBF: | 2,500,000 Times | Speed: | 1.5s-6s Adjustable |
| Controller Input Voltage: | DC24V±10%, 7.5A | Protection: | IP54 |
| High Light: | AC220V Folding Boom Barrier,Folding Boom Barrier for Parking Lot,Adjustable Speed Folding Boom Barrier |
||

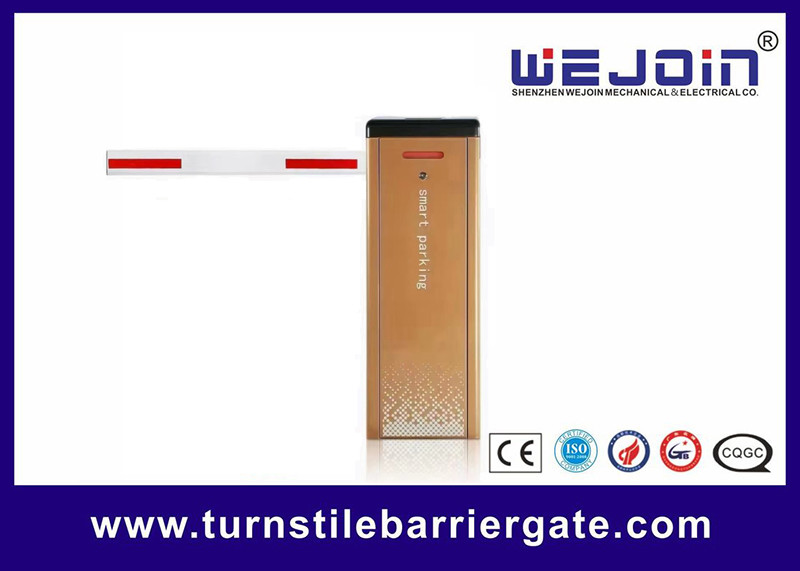

Boom Barrier Gate is an automatic barrier gate, which is designed to provide an effective and efficient method for controlling access. It adopts a folding boom barrier, made of 304 stainless steel, which is resistant to corrosion and rust. The boom barrier gate is powered by a DC24V±10%, 7.5A motor and has a maximum power of 180W. It is equipped with safety features, such as anti-collision and emergency stop, to ensure user safety. The boom barrier gate is designed for heavy duty use and is provided with a 1 year warranty. Furthermore, its sleek design ensures that the boom barrier gate is aesthetically pleasing and unobtrusive.
This Motor is driven with a connecting rod transmission mechanism to guarantee that the operation is stable and reliable. It also has an extended motor life of up to 2.5 million times and a spring life of 500,000 times.
For improved safety, It comes with an auto-reversing on the obstruction function which will automatically reverse the boom when it meets an obstacle.
Additional features include support of external radar, loop detector, infrared photocell anti-smashing function and of DC 12V power output which can be used for external radar power supply. The motor also supports RS485 communication or RS485 off-line connection.
Alternatively, DC24V power supply is also an available option.
The motor of this product is able to work under temperatures between -35℃ and 80℃.
The power supply input voltage can be either AC110±10%, or AC220V±10%. The controller input voltage needs to be DC24V±10%, 7.5A.
The power of the motor is 180W MAX. The relative humidity should be between 30% and 80%, with no condensation.
The distance of remote control needs to be L≥30M, and the running speed is adjustable between 1.5 to 6 seconds.
The Mean Time Between Failures (MTBF) of the product is 2,500,000 times.
WEJOIN E30 Boom Barrier Gate is a high-end automatic security gate system, designed to provide reliable and efficient way to manage the access control of parking lots, office buildings, commercial areas, and other facilities. The boom barrier is made of 304 stainless steel with IP54 level of protection, which ensures it can withstand harsh weather conditions. It also has a working temperature of -35℃~ + 80℃. The boom barrier gate is certified with CE and ISO, and has a minimum order quantity of 1 PCS. The price is negotiable based on the order quantity. The packaging is carton, and the delivery time is 7 working days. The payment terms are T/T and the supply ability is 10000 sets/month. The frequency is 50Hz/60Hz.
The Automatic Barrier Gate is the perfect choice for parking lot control, providing an efficient way to manage the access control of vehicles. It has an extremely high speed, allowing for quick and easy operations. The Automatic Boom Barrier is also equipped with sensor-based safety features, such as infrared photocells, to ensure the safety of users and pedestrians. Moreover, it is user-friendly and easy to operate, making it a great choice for any facility.
WEJOIN E30 Boom Barrier Gate is an ideal choice for any security system, offering an efficient and reliable solution for access control. It is the perfect solution for parking lots, office buildings, commercial areas, and other facilities.
We provide technical support and services for our Boom Barrier Gate product. Our services include:
We are committed to providing the best possible service to our customers. If you have any questions or concerns about our products, please do not hesitate to contact us.
Boom Barrier Gate products are packaged in a durable cardboard box or crate for safe handling and storage. The products are then shipped in a standard truck, container, or cargo ship with appropriate protection from the elements.
All products are shipped with full tracking information, and customers will receive a tracking number after shipment.
