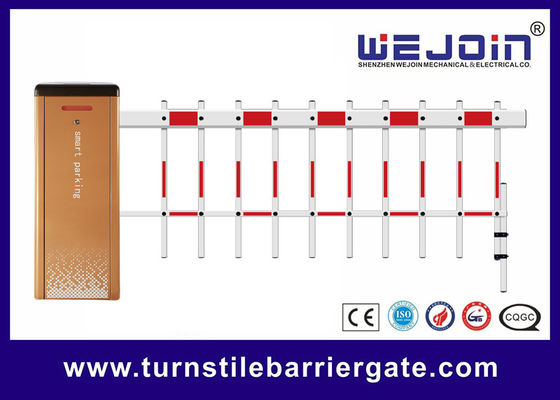

Name: Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: DZE-BL
Price: 250.00 USD
Availability: InStock

Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode

1 set

MOQ

negociate

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Operating Time: 1.5s~6s

Boom Type: Straight Folding Fencing

Housing Material: Steel With Powder Coating

Color: Gold, Black

Application: Parking Lot

Warranty: 1 Year

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: DZE-BL

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: T/T

Supply Ability: 10000 sets/month

Gallery

Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode

Product Description

Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode

Boom Barrier Basic Features:

1. Motor drive, with connecting rod drive mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times or more, spring life of 500,000 times.

2. The whole series is equipped with rebound function, when the boom is blocked in the process of falling, it will rebound automatically.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

Intelligent Barrier Technical Data:

Type	Description (Boom Length=L, Meters=M, Seconds=S)
Barrier gate with straight boom	L≤3M, up speed 1.5S. L≤4M, up speed 3S. L≤4.5M, up speed 4S. L≤5M, up speed 5S. L≤6M, up speed 6S.
Barrier gate with folding boom	L≤3M (1.5+1.5M), up speed 3S. L≤4M (2+2M), up speed 4S. L≤5M (2.5+2.5M), up speed 6S.
Barrier gate with fence boom	Two-levels, L≤3M, up speed 4S. Two-levels, L≤3.5M, up speed 5S. Two-levels, L≤4.5M, up speed 6S. Three-levels, L≤3M, up speed 5S. Three-levels, L≤4M, up speed 6S.

Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~264V

3. Controller input voltage: DC24V±10%, 7.5A

4. Motor power: 180W

5. Relative humidity: 30%~80%, no condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running speed: 1.5~6 seconds adjustable

8. MTBF: 3,000,000 times

Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode 0
