Folding Boom Electronic Barrier Arm Gate , Car Park Entrance Barriers

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton box
Delivery Time: 3~7 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/week
Detail Information
Voltage: 110v/220v Package: Carton
Boom Type: 90 Degree / 180 Degree Folding Boom Working Temperature: -40℃~+75℃
Net Weight: 35kgs Max Boom Length: 6 Meters
High Light:

parking gate arm

,

automatic parking barrier


Product Description

Folding Boom Electronic Barrier Arm Gate , Car Park Entrance Barriers





Quick Detail





Name Barrier Gate Application Parking System
Speed 3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 120W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~75℃ Humidity ≤90%
Remote Control Distance ≤50m Boom Dimension 45*100mm
Net Weight 39kg Gross Weight 44kg
Certificate CE/ISO Boom Type Octagonal boom





Description





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds





Functions & Features:





1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.

2. Machine core with strong and double springs, makes the machine core work more steadily.

3. Die-casting aluminum alloy motor, precise and good at thermal radiation.

4. Crank and rod structure makes the boom run placidly.

5. Double safety limit switches (photo electricity limit switch and motor memory sensor).

6. Reversing on obstacle.

7. Auto-closing.

8. Support the infrared photocell for anti-bumping function (optional)

9. Support external and internal vehicle loop detector (optional)

10. Traffic light interface (AC220V, can support lamp with 40W)

11. Wire control (switch signal) /Remote control (418MHZ)

12. RS485 communication module( optional)

13. Open, close control interface for parking system

14. Provide limit state signal for parking system





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.







Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

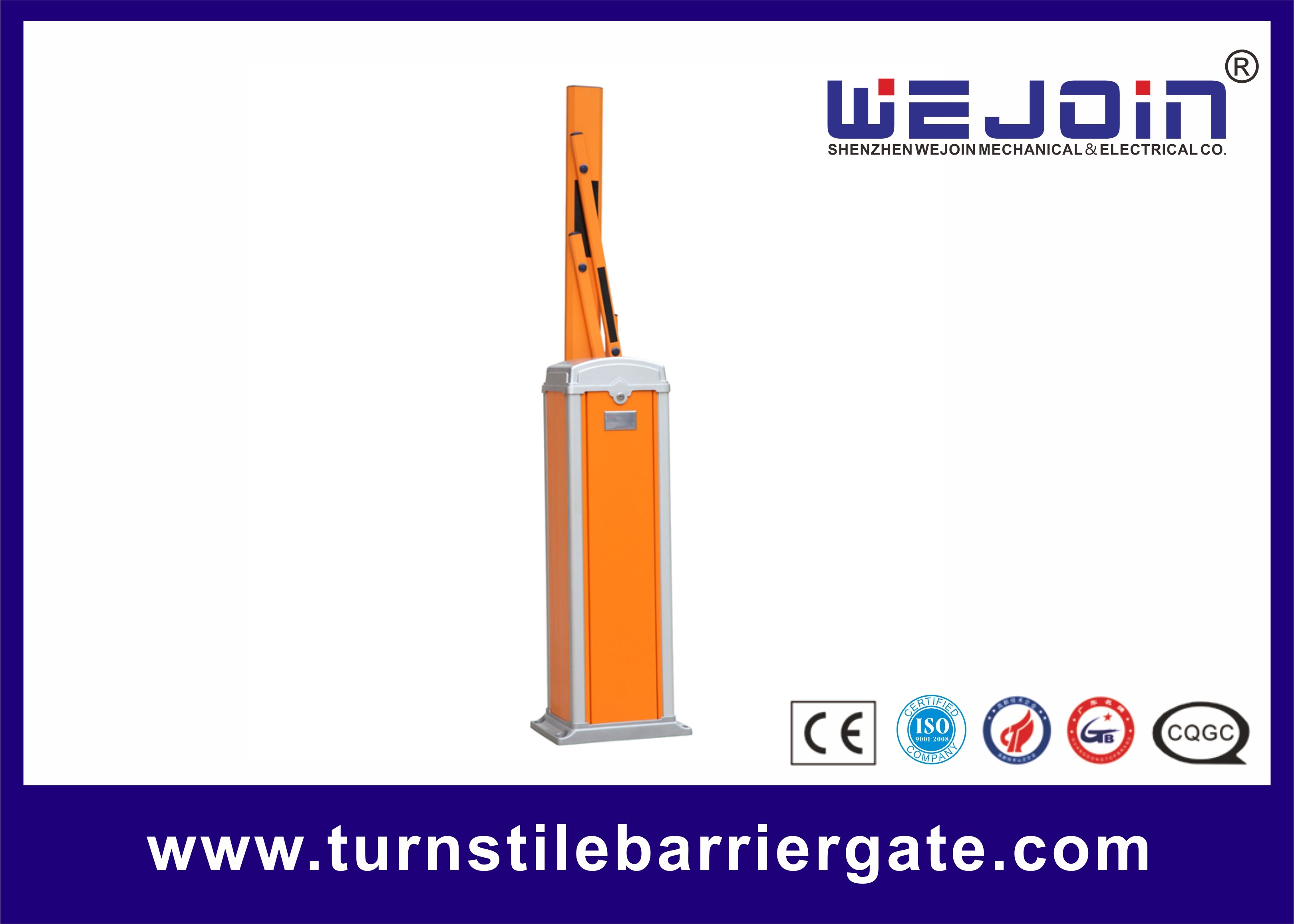

Folding Boom Electronic Barrier Arm Gate , Car Park Entrance Barriers 0
