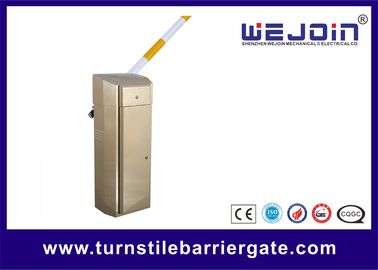

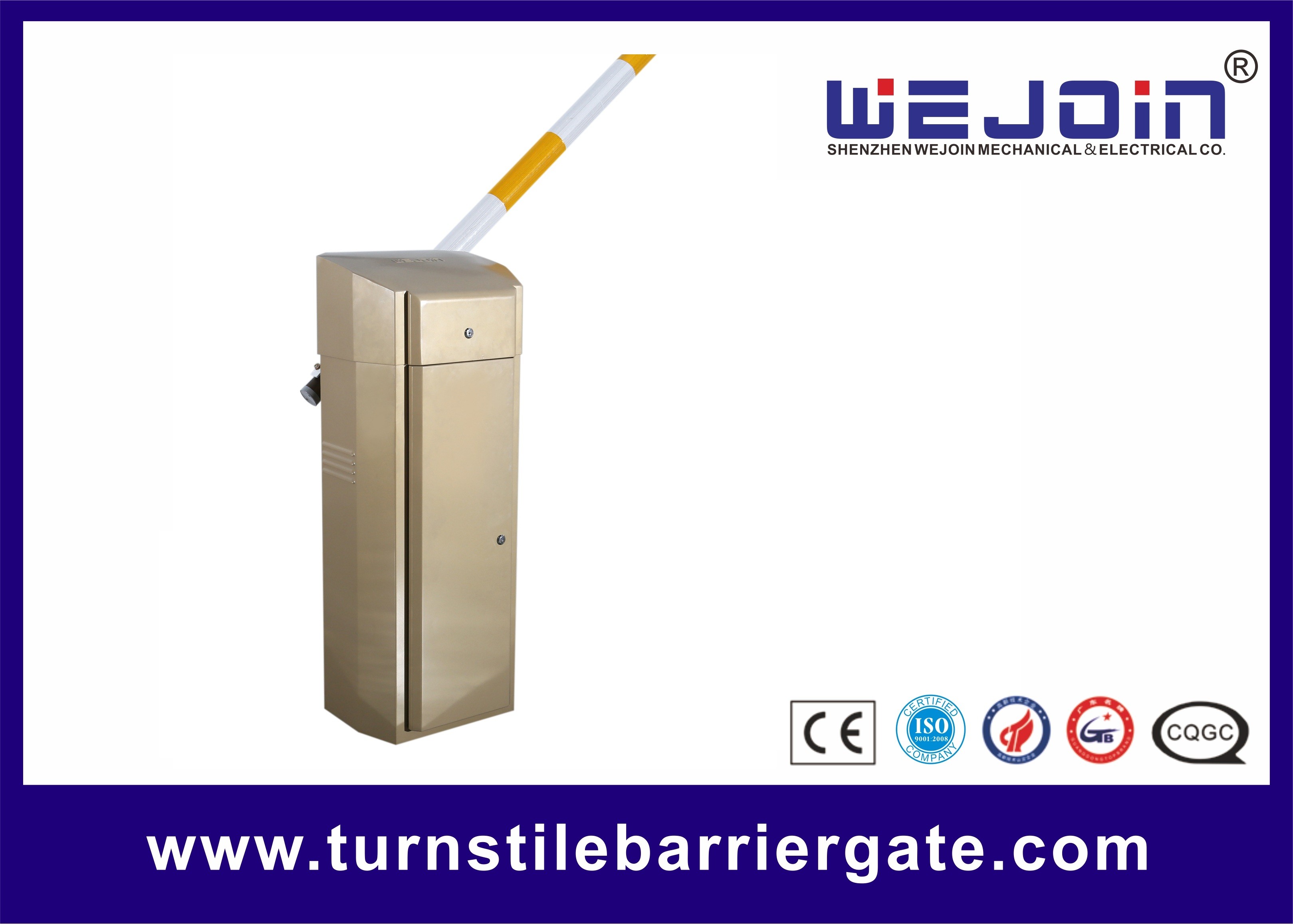

Car Variable Frequency Electronic Boom Barrier For Toll Applications Parking System

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJDZ104
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Carton package
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Housing Color: Optional Housing Dimension: 1050*305*445mm
20ft Container: 120set
High Light:

car parking barriers

,

car park barrier systems

,

Toll Electronic Boom Barrier


Product Description





Car Variable Frequency Electronic Boom Barrier For Toll Applications Parking System







Quick Detail:



Name Variable Frequency Barrier Gate Application Parking System
Speed 0.6S second Feature Manual release
Rated Power 120W Certificate CE, ISO,
Net Weight 50KG Voltage AC220V, AC110V




Functions & Features:



1. Cabinet can be customized.

2. Round arm and octagonal arm are optional.

3. AC based motor is stronger and maintenance free,with electromagnet brake.

4. Manual realease when power off.

5. Reversing on obstacle.

6. Support infrared photocell and loop detector for security

7. Connect with computer by RS485.

8. Covenient clutch device and manual hand wheel,user-friendly for power off.

9. Digital limit for limit adjustment-free.

10. Swing-away flange in the case of a collsion with avehicle,the barrier arm is released and can be manually re-engaged afterwards.

11. Toll barrier from WEJOIN is the proper solution for toll applications thanks to their fast speed,reliability and low operation costs.





Specifications



Model WJDZ104
Working Temperature -35℃~+85℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 300W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 65kgs
Speed 0.6S
Max boom length 2.5 meters





Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

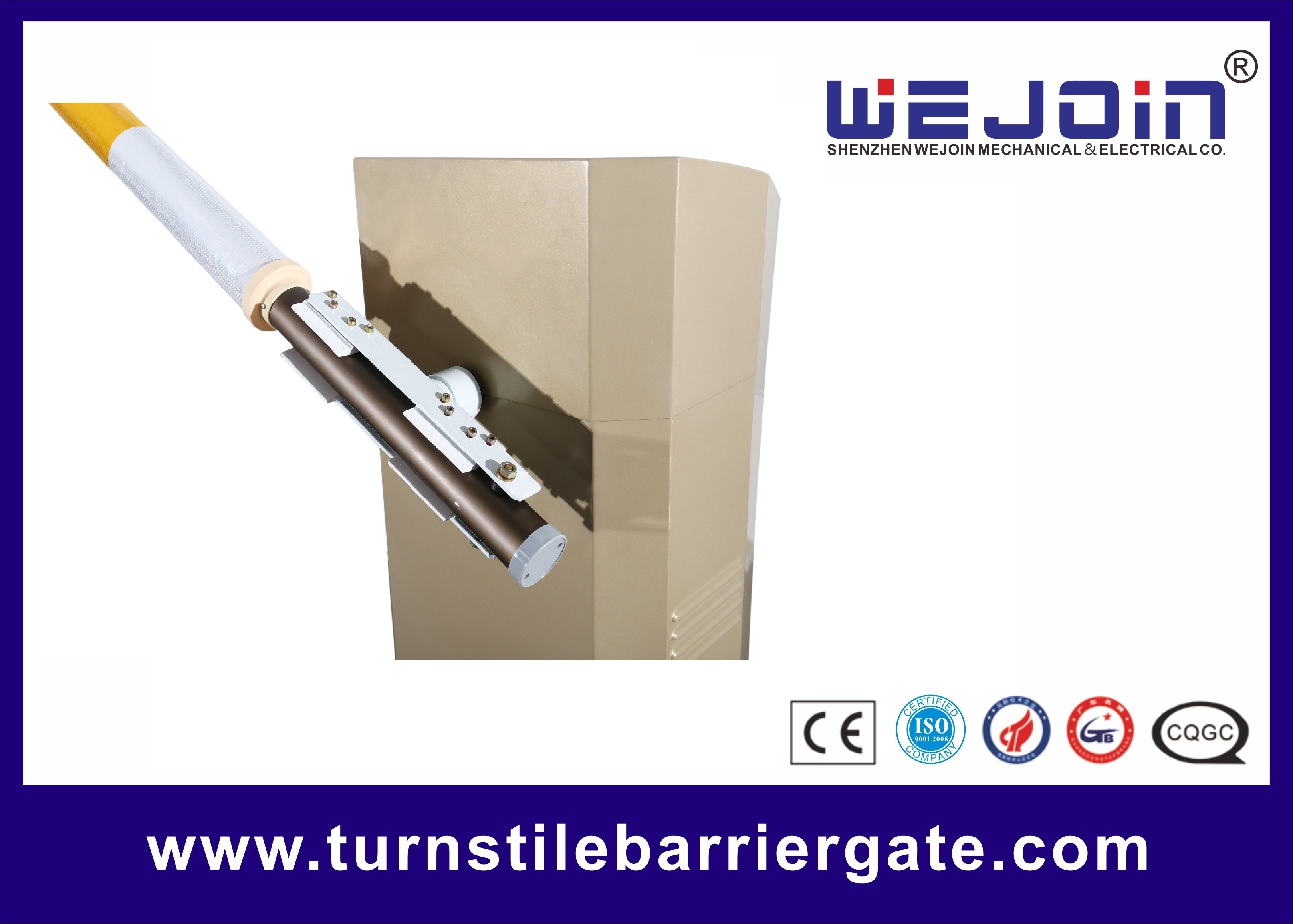

Mechanism core:

Car Variable Frequency Electronic Boom Barrier For Toll Applications Parking System 0
