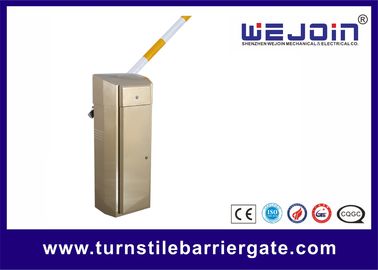

Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System

    • Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System
    • Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System
  • Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: WEJOIN
    Certification: CE, ISO
    Model Number: WJCB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Carton package
    Delivery Time: 3-15 days depending on the quantity
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 10000 set/month
    Contact Now
    Detailed Product Description
    Housing Color: Optional Housing Dimension: 1050*305*445mm
    20ft Container: 100set Mechanical Temperature: -30°C~85°C
    Power Supply: AC 220V/110V,50/60Hz Voltage: AC220V, AC110V



    Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System



    Quick Detail:

    Name Barrier Gate Applicatione Effective Toll Processing
    Speed 0.4S~0.9S second Feature Manual release
    Rated Power 300W Certificate CE, ISO
    Net Weight 65KG Voltage AC220V, AC110V



    Functions&Features:
    1.DC permanent magnet synchronous motor(PMSM),servo control.
    2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.

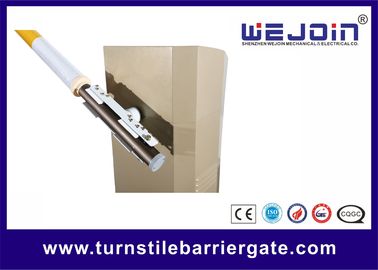

    3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
    4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
    5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
    6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
    7.More sensitive and reacting faster when reversing on obstacles.
    8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
    9.LCD display controller, more humanized operation and setting.
    10.NO/NC wire control signal input are optional.
    11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.



    Technical Data
    Model WJCB02E WJCB02H WJCB02I
    Running Speed 0.4S~0.9s 0.9s~5s 5s 5s 5s 5s 3s~5s 5s 5s 5s 5s
    Boom Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence Straight 90° Floding 180° Folding 2 Fence 3 Fence
    Max Boom Length 2m~3.5m 3.5m~6m 5m 4m 4.5m 4m 4.5m~8m 6m 5m 6m 5m
    Input Voltage AC 220V±10%, AC110V
    Motor Voltage DC310V
    Enclosure Rating IP54
    Working Temperature -35°C~+85°C
    MTBF 10000000 times
    Duty Cycle 100%
    Traffic Flow Application 24 hours uninterrupted operation
    Max Motor Power 300W
    Max Motor Speed 90r/min
    Max Torque 480N.m



    Communication with customers

    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 10000 units.



    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.



    Mechanism core:

    Manual Release 0.6s Traffic Barrier Gate For Effective Toll Processing Parking System
